LIFEPO4 is the more efficient technology batteries , knocking out traditional lead acidbatteries . VODNO provides a complete line of 12 ,24 and 48 volt batteries for use inRVS , Boats , Evs and off-grid applications and much more.
Electric bicycle
Electric motorcycle
Electric tricycle
Electric boat
Motorhome
Energy storage
RC toy
Led light
Street light
UPS
Medical Equipment
Robot
VODNO innovative technology built to your product standards . We approach every OEM partnership with openness. so we can understand your needs and you can understand our competencies , standards and commitment to delivery from engineering and design to development teams that prioritize performance and customer experience , trust VODNO to be your single source partner to deliver the custombattery solution that achieves your vision . When you re looking for a trust worthy partner tobuild your custom product , let our experts reduce development risk and bring a high-quality product to market faster for you .
|

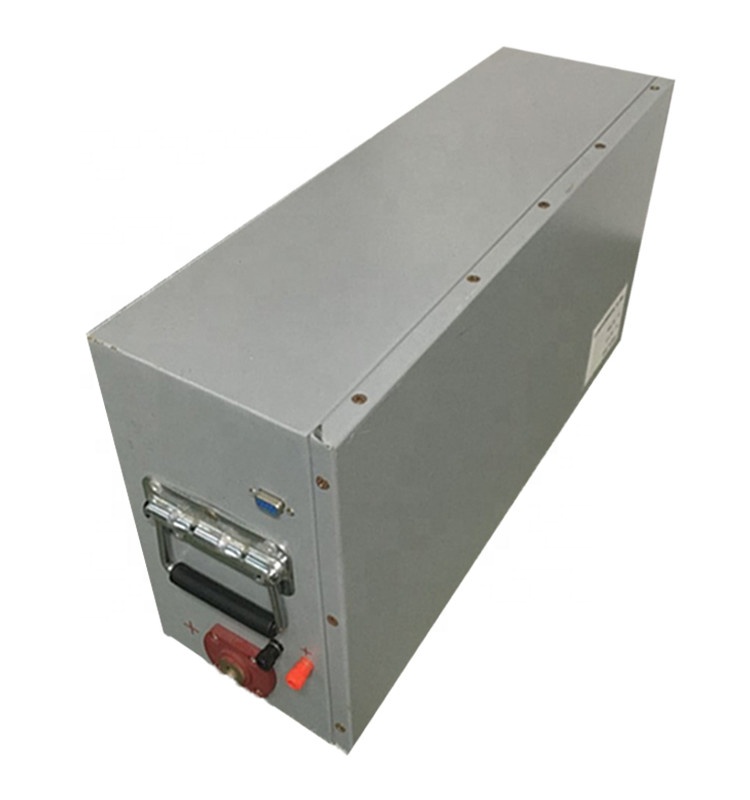

Model |
VDO48150 |
|
|
General Characteristics |
||
|
Nominal voltage |
51.2V(16S) |
|
|
Nominal capacity@0.2C |
150Ah |
|
|
Min.capacity@0.2C |
148Ah |
|
|
Nominal energy |
7.68KWh |
|
|
Dimensions(W*D*H) |
(customzied) |
|
|
Approx. weight(exclude cabinet) |
78Kgs |
|
|
Battery connection |
16S25P |
|
|
Electrical Characteristics |
|
|
|
Operating voltage range |
51.2V |
|
|
Recommended charging voltage |
58.4V |
|
|
Max. charging current |
40A |
|
|
Max.continuous discharge current |
100A |
|
|
Max.peak discharge current |
250A,<3S |
|
|
Discharging cut-off voltage |
40v |
|
|
Faraday charging efficiency |
≥98% |
|
|
Energy charging efficiency |
≥92% |
|
|
Operating conditions |
|
|
|
Operating temperature |
Charge |
0℃～55℃ |
|
Discharge |
－20℃～60℃ |
|
|
Storage temperature |
0℃～55℃ |
|
|
Storage duration |
12Months @20℃~25℃ |
|
|
Water dust resistance |
Metal case IP 54 |
|
|
Lifecycle times |
>2000 Cycles ( 0.2C 80% DOD) |
|
The energy storage battery is applicable for commercial or residential purposes.
1.Solar Energy Storage 2.Solar Street lighting 3.Light Electric Vehicle 4.E-bike/E-Rickshaw 5.Golf Cart 6.UPS
