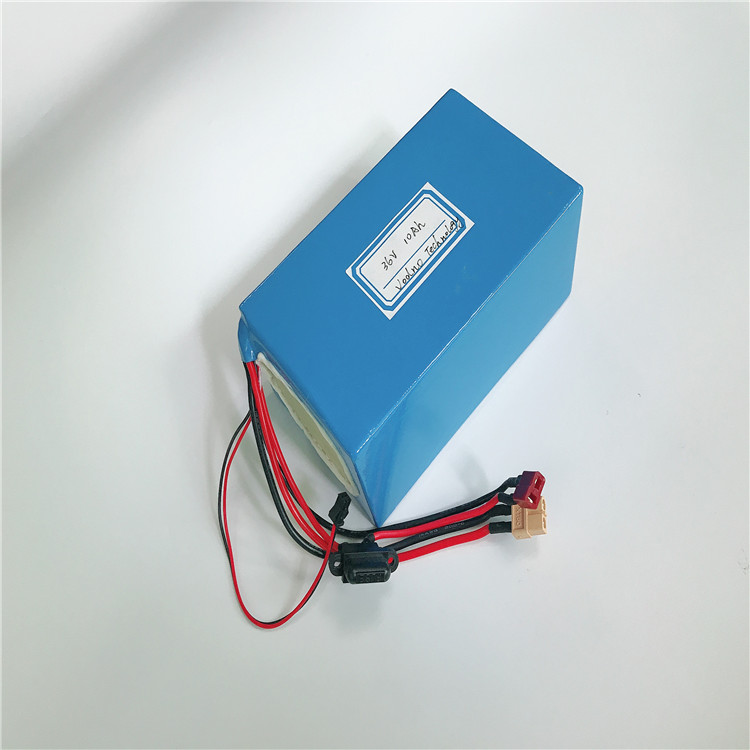

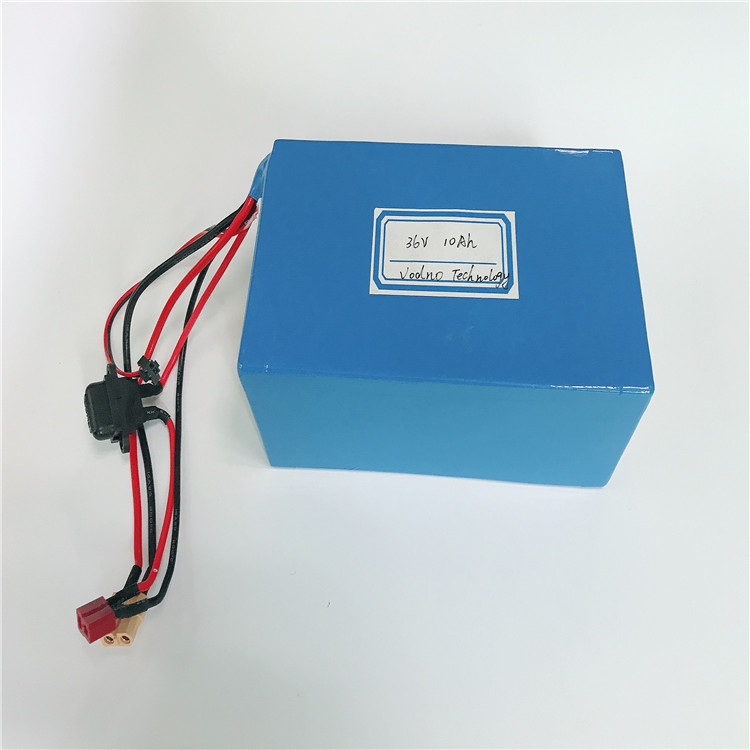

18650 Lithium 36v 10Ah Battery Pack With Shrinkage Package

18650 Li-ion batteries are the battery of choice when designing for higher voltage and current requirements. Li-ion have relatively low self-discharge rates, and are capable of high discharge currents and better performance than nickel and lead based batteries.

Quantity:
Share this:

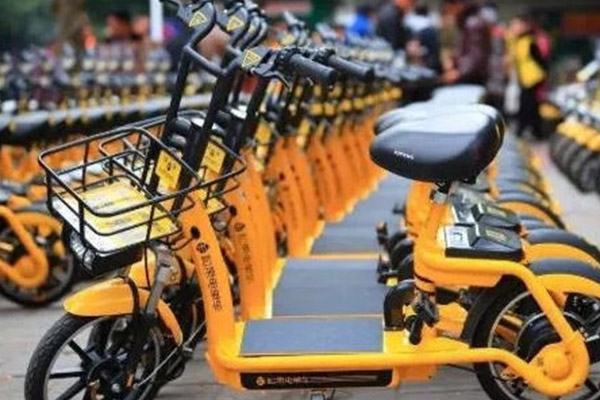

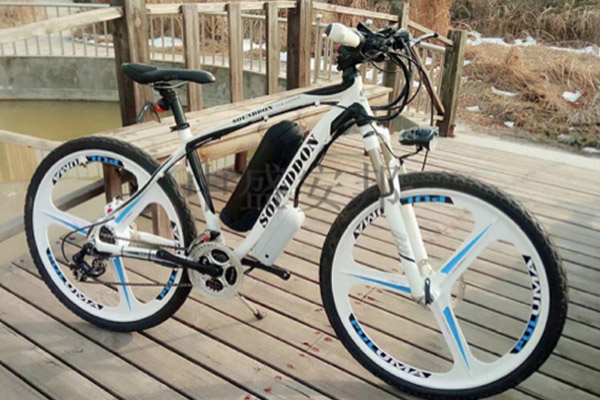

Electric bicycle

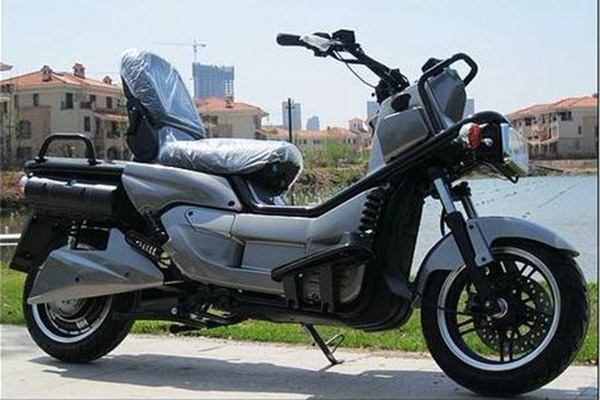

Electric motorcycle

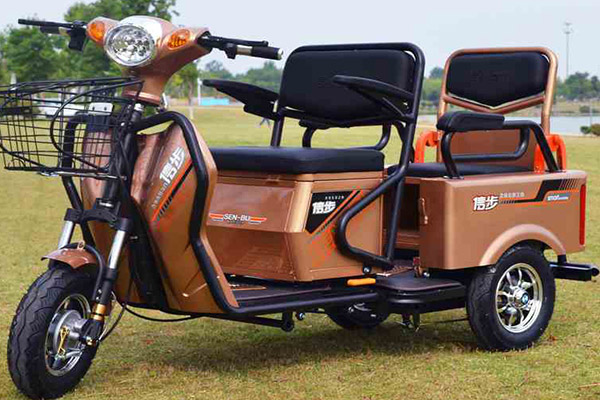

Electric tricycle

Electric boat

Motorhome

Energy storage

RC toy

Led light

Street light

UPS

Medical Equipment

Robot

Overview

Quality + Safety = VODNO e-bike battery

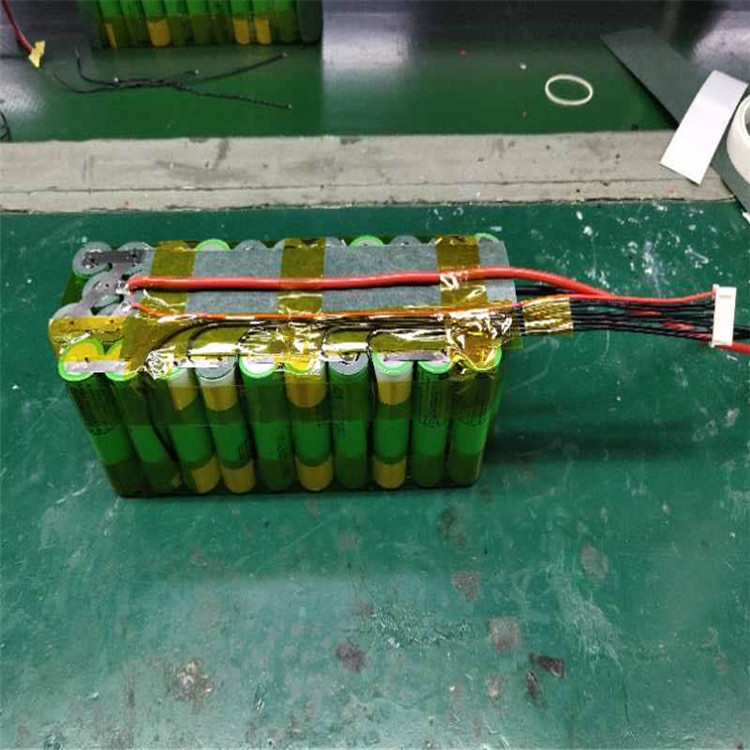

1,We are use high rate 18650 battery cell in auto level quality to make a amazing e-bike battery pack, which has reasonable internal layout in series and parallel, with automatic welding technology using formed pure nickel sheet welding.

2,Battery pack’s performance and safety depends on cells, BMS assure battery pack working in normal situation and long life span. We use high top quality BMS to protect batteries are in normal situation, extend life span, reduce the frequency of battery pack accidents.

3,We ensure that the battery pack is 100% test before shipment, inspect the internal welding spot, We ensure that each battery pack is qualified when they are arrives at the customer'.

4,We provide 1 year warranty. Our team experts are able to help you solve problem you had, we will give priority to processing.

5,CB UN KC certification are available.



Not sure which battery is right for you? No problem: our battery experts are available to assist you in making the correct choice.







Specifications

Model

VDO-Li3610     ( China brands )

General Characteristics

Nominal voltage

36V (10S4P)

Nominal capacity@0.2C

10.4Ah

Nominal energy

374.4Wh

Internal Resistance

200≦mΩ

Life cycle

>600 Cycles @0.2C Charging /Discharging at 90%DOD

Standard Charging

Charging voltage

42.0+/-0.2V

Charging Mode(CC/CV)

At 0℃~45℃temperature, charged to 42V at constant current 0.5C3A,and then at constant voltage 42V until the current drops to 0.5C3A

Charging Current

3A

Max.Charging Current

5A

Standard Discharging

Discharging Current

10A

Max.Continuous Current

15A

Max.Pulse Current

30A(<3S)

Discharging cut-off Voltage

28V

Operating conditions

Operating temperature

Charge

0℃~60℃

Discharge

-20℃~60℃

Storage temperature

-10℃~45℃

Water dust resistance

N/A

Structure

Casing

Plastic PVC

Dimension

N/A

Approx.Weight

≤2.25kgs

Terminal

XT60/3pin /key switch

Application

lithium ion battery pack have been widely used in electrical vehicle, What is your application ? Let me know, we are able to solve your problem.

About Us

Vodno Technology Co., Ltd. was founded in 2010, the predecessor of the lithium material, electric bike battery, and the core production-based manufacturers, after nearly seven years of development, has developed into a product design and development, battery solutions and electronic circuit program Design, battery production and quality control, sales in one of the high-tech Co., Ltd., and become the battery industry's leading enterprises. Vodno take a senior engineer of the engineering and technical team as the core,after the years of practice summed up a set of highly efficient and accurate design standards and production management practices to ensurethat each design, each product is uncompromising attention to excellence. "Treat every client with sincerity, implement every promise" is Vodno's corporate culture, scientific management, rigorous attitude, high-quality elite to Vodno brought rapid growth, won the recognition of overseas customers around the world.Now, Vodno Technology Co., Ltd. has more than 20 countries and regions around the world with a number of well-known enterprises to cooperate, many of them like "Foxconn" the world's top 500 enterprises, and most products have been CE, ROHS, UN, etc. International Standard Certification. Today, Vodno has grown into a trusted gold supplier in the battery industry.

FAQ

Q1 . How to proceed an order for Battery

Al : Firstly , pls let us know your requirements , such as the dimension , continuous & peak dischargecurrent , application of thebatterySecondly , pls let us know the purchasing quantity and when will your project start . We quote accordingto the detailshirdly customer confirms the price , sample and places deposit for formal orderourthly We arrange the production

Q2 : How to deal with the faulty ?

A2 : Firstly , Our products are produced in strict quality control system and the defective rate will be lessthan 0 . 2%Secondly , during the guarantee period , we will send new batteries with new order to replace thedefecthirdly , we will test the defective batteries and make 8D report . We will find out the reason and proposeprovement measures for future production

Q3 : Do you support door to door shipping ? drop ship

A3 : Yes . If battery unit weight is below 30kg , we can delivery it via Air Express . If battery unit weightabove 30ka , wedelivery it via sea . If you want to us to help you to make custom clearance , we would like to do that . Wesupport drop ship

Q4 Does your battery include BMS ? Can we use it for vehicle ?

A4 : Yes , our battery pack include BMS , you can use it for low speed vehicles And make sure thedischarge current can meet thapplication request . If you want to use standard vehicle , please inform us , we need to adopt morecomplex design BMS and differenttechnology solution.

What is Your Application?Talk to us, Vodno Battery Experts will offer you a best solution
