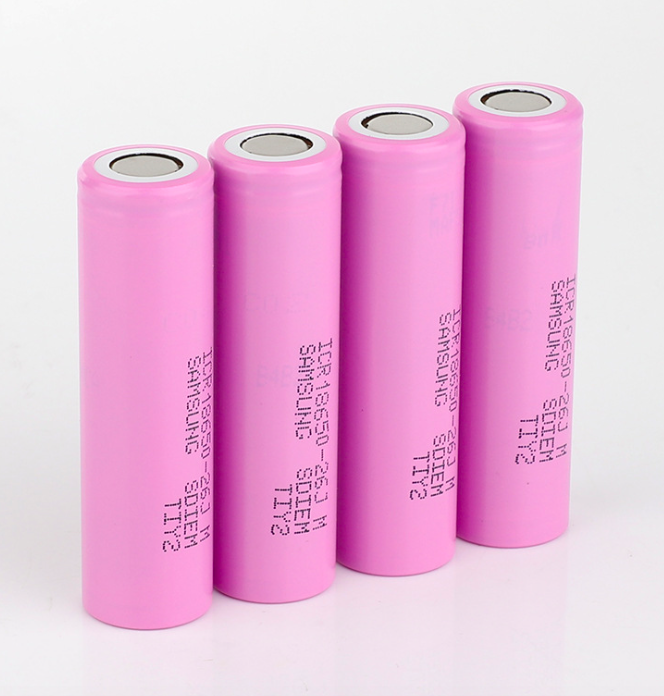

Samsung brand ICR18650-26J M 2600mAh 3.7V 18650 battery cell

High Discharge current Exceptional cycle life Low temperature operation down to -20°C High thermal stability, high reliability Very low impedance Fast Charge Capability

Quantity:
Share this:

Electric bicycle

Electric motorcycle

Electric tricycle

Electric boat

Motorhome

Energy storage

RC toy

Led light

Street light

UPS

Medical Equipment

Robot

Overview

The two most important specs for 18650 cells are capacity measured in mAh (milliamp hours) and maximum continuous discharge measured in A (amperes). When selecting a battery type you must favor one over the other. High-capacity batteries have a low max. continuous discharge and high-amp batteries have a low capacity. Typical highest-capacity batteries in 2015 are ~3500mAh, and highest-amp batteries are 30A.

Counterfeit cells are a growing problem, These batteries often are dangerous and marked with exaggerated specifications. Many used batteries are rewrapped as new and white-labeled. Anti-counterfeiting measures like quality control, and supply-chain inspections are very important for retailers or manufacturers to ensure safety for end-users.

Warning: Lithium ion batteries may explode or burn due to improper use. Using these batteries for purposes not intended by the manufacturer, including outside a battery pack and/or without a BMS, may cause severe injury and damage. We are not responsible for any injuries caused by lithium ion batteries - use at your own risk.



Specifications

Model:

ICR18650-26J M

Manufacturer:

Samsung

Chemistry:

ICR

Max.discharge current:

2C

Nominal capacity:

2600 mAh

Nominal voltage:

3.6 V

Discharge end voltage:

2.5 V

Charging voltage:

4.20 +/- 0.05 V

Standard charging current:

1.30 A

Weight:

45.0 g

Application

The energy storage battery is applicable for commercial or residential purposes.

1.Solar Energy Storage  2.Solar Street lighting  3.Light Electric Vehicle  4.E-bike/E-Rickshaw  5.Golf Cart  6.UPS

Battery Bro only stocks authentic lithium-ion cells that are safe for use in:

Electric vehicles - HEV, P-HEV, EV

Laptops, smart-phones

E-cigarettes, vaporizers, & MODs

Powertools, cordless tools, gardening tools

Digital cameras, games, MP3 players

Shavers, toothbrushes

Energy storage both commercial and home

Flashlights

RC cars, UAVs, drones, quadcoptors

Industrial machines, industrial stationary

Medical machinery

And more...

All batteries are verified and tested and guaranteed genuine before shipping.
