Electric bicycle battery professional builder
Electric bicycle battery professional builder

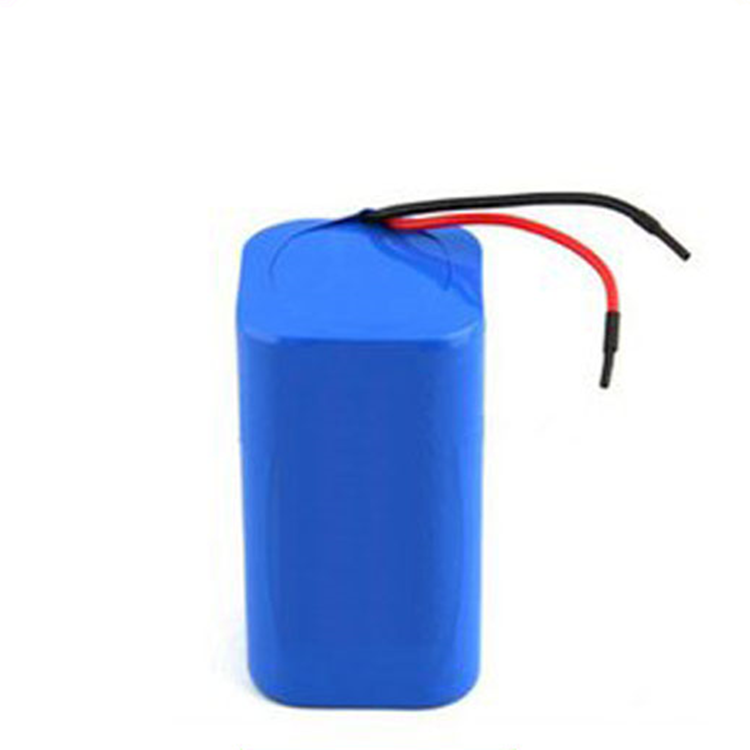

18650 Li-ion batteries are the battery of choice when designing for higher voltage and current requirements. Li-ion have relatively low self-discharge rates, and are capable of high discharge currents and better performance than nickel and lead based batteries.
Electric bicycle
Electric motorcycle
Electric tricycle
Electric boat
Motorhome
Energy storage
RC toy
Led light
Street light
UPS
Medical Equipment
Robot
The customer experience is focused to provide quality products and services. we provide both custom and standard battery solutions for OEM applications. With more than 10+ years of collective experience in custom battery pack design and battery distribution, we have the knowledge and expertise to help you through your most complex design and manufacturing challenges. We offer design support for the total battery pack requiring a BMS, a PCB, Enclosure, Testing, Regulatory Support, Custom Programming, etc. for industrial, commercial, and military applications.
What service you could get from us ?
Battery cell can be choose for China brands or LG SAMSUNG SONY PANASONIC
PCB parameter could change based on application
VODNO provide difference color of plastic PVC.
Buyer’s logo printing on battery requirement are welcome
Design battery size and solution in free service
Buyer advise connector type in order to assembly easily.
|
Typical Capacity |
2600mAh @ 0.2C Discharge |
|
Minimum capacity |
2580mAh @ 0.2C Discharge |
|
Nominal voltage |
7.40V |
|
Standard Charge |
CC/CV,0.2C5A,8.40V |
|
Standard Discharge |
CC,0.2C5A, 6.00V |
|
End-of-charge Voltage |
8.40V±0.1V |
|
End-of-charge Current |
0.02C5A （At CV mode） |
|
End-of-discharge Voltage |
6.00 V |
|
Charging Time |
8.0hours（standard charge） 8小时 |
|
Quick Charge Current |
2600mA （1.0C5rate） |
|
Quick Discharge Current |
5200mA （2.0C5rate） |
|
Max Discharge Current |
7800mA （3.0C5rate） |
|
Initial Impedance |
Max: 240mW |
|
Weight |
Approx：95±2g |
|
Operating temperature |
Charging： 0℃~45℃ Discharging：-20℃~60℃ |
|
Storage temperature |
-5℃~35℃ |
|
Storage Humidity |
≤75% RH |
|
Appearance |
Without scratch, distortion, contamination and leakage |
|
Standard environmental condition
|
Temperature ： 25±2℃ Humidity : 45-75%RH Atmospheric Pressure ： 86-106 KPA |
The energy storage battery is applicable for commercial or residential purposes.
1.Telecommunication: cellular phone, web phone, interphone, wireless earphone.
2.Portable office devices: Notebook, PDA, portable electrograph, portable printer.
3.Video devices: GPS, digital camera, camcorder, portable DVD, portable television, MP3, MP4.
4.Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine.
5.Illuminate devices: miner lamp, searchlight.
6.Others: toys, models.
