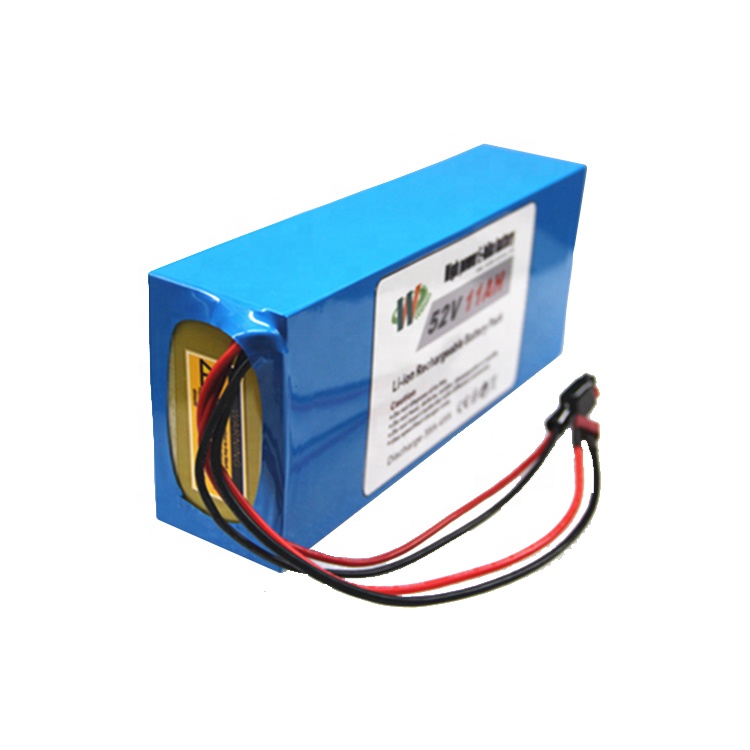

52v 3000w Electric Bike Kit With Batteries For Electric Bike Battery

Li ion battery is much popular in the electric bicycle industrial, Its brings us friendly environment with lot of fun world. Li ion battery pack for e-bike is lighter weight, size smaller and high energy power, It is best choice up to now.

Quantity:
Share this:

Electric bicycle

Electric motorcycle

Electric tricycle

Electric boat

Motorhome

Energy storage

RC toy

Led light

Street light

UPS

Medical Equipment

Robot

Overview

Quality + Safety = VODNO e-bike battery



1,We are use high rate 18650 battery cell in auto level quality to make a amazing e-bike battery pack, which has reasonable internal layout in series and parallel, with automatic welding technology using formed pure nickel sheet welding.

2,Battery pack’s performance and safety depends on cells, BMS assure battery pack working in normal situation and long life span. We use high top quality BMS to protect batteries are in normal situation, extend life span, reduce the frequency of battery pack accidents.

3,We ensure that the battery pack is 100% test before shipment, inspect the internal welding spot, We ensure that each battery pack is qualified when they are arrives at the customer'.

4,We provide 1 year warranty. Our team experts are able to help you solve problem you had, we will give priority to processing.

5,CB UN KC certification are available.



Not sure which battery is right for you? No problem: our battery experts are available to assist you in making the correct choice.







Specifications

Model

VDO-LN5215 (China brand cell)

General Characteristics

Nominal voltage

52V (14S)

Nominal capacity@0.2C

15Ah

Nominal energy

780Wh

Internal Resistance

240≦mΩ

Life cycle

>800 Cycles @0.2C Charging /Discharging at 90%DOD

Standard Charging





Charging voltage

58.8+/-0.2V

Charging Mode(CC/CV)

At 0℃~45℃temperature, charged to 58.8V at constant current 0.5C3A,and then at constant voltage 58.8V until the current drops to 0.5C3A

Charging Current

3A

Max.Charging Current

7.5A

Standard Discharging





Discharging Current

15A

Max.Continuous Current

35A

Max.Pulse Current

45A(<10S)

Discharging cut-off Voltage

41.0V

Operating conditions



Operating temperature

Charge

0℃~60℃

Discharge

-20℃~60℃

Storage temperature

-10℃~45℃

Water dust resistance

N/A

Structure

Casing

PVC shrinkage

Dimension

67*119*278mm

Approx.Weight

≤4.2kgs

Terminal

N/A

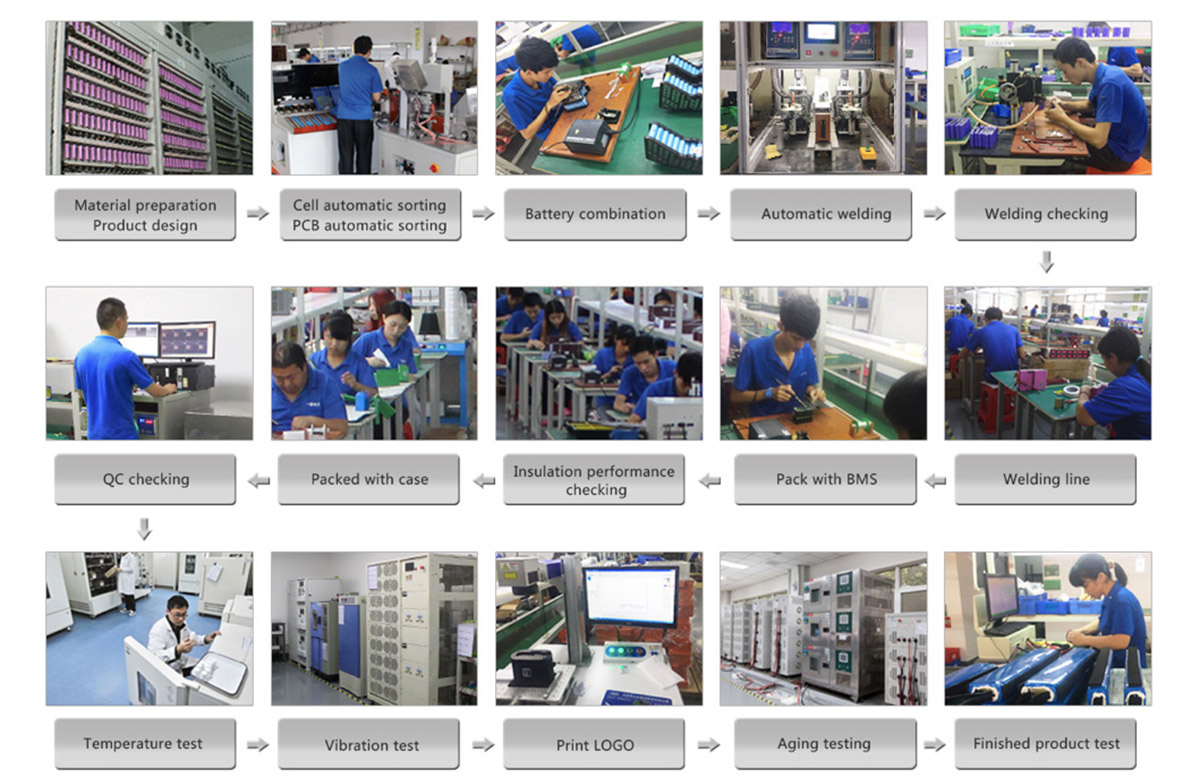

Workflow





About Us

Vodno Technology Co., Ltd. was founded in 2010, the predecessor of the lithium material, electric bike battery, and the core production-based manufacturers, after nearly seven years of development, has developed into a product design and development, battery solutions and electronic circuit program Design, battery production and quality control, sales in one of the high-tech Co., Ltd., and become the battery industry's leading enterprises. Vodno take a senior engineer of the engineering and technical team as the core,after the years of practice summed up a set of highly efficient and accurate design standards and production management practices to ensurethat each design, each product is uncompromising attention to excellence. "Treat every client with sincerity, implement every promise" is Vodno's corporate culture, scientific management, rigorous attitude, high-quality elite to Vodno brought rapid growth, won the recognition of overseas customers around the world.Now, Vodno Technology Co., Ltd. has more than 20 countries and regions around the world with a number of well-known enterprises to cooperate, many of them like "Foxconn" the world's top 500 enterprises, and most products have been CE, ROHS, UN, etc. International Standard Certification. Today, Vodno has grown into a trusted gold supplier in the battery industry.

FAQ

Q1 . How to proceed an order for Battery

Al : Firstly , pls let us know your requirements , such as the dimension , continuous & peak dischargecurrent , application of thebatterySecondly , pls let us know the purchasing quantity and when will your project start . We quote accordingto the detailshirdly customer confirms the price , sample and places deposit for formal orderourthly We arrange the production

Q2 : How to deal with the faulty ?

A2 : Firstly , Our products are produced in strict quality control system and the defective rate will be lessthan 0 . 2%Secondly , during the guarantee period , we will send new batteries with new order to replace thedefecthirdly , we will test the defective batteries and make 8D report . We will find out the reason and proposeprovement measures for future production

Q3 : Do you support door to door shipping ? drop ship

A3 : Yes . If battery unit weight is below 30kg , we can delivery it via Air Express . If battery unit weightabove 30ka , wedelivery it via sea . If you want to us to help you to make custom clearance , we would like to do that . Wesupport drop ship

Q4 Does your battery include BMS ? Can we use it for vehicle ?

A4 : Yes , our battery pack include BMS , you can use it for low speed vehicles And make sure thedischarge current can meet thapplication request . If you want to use standard vehicle , please inform us , we need to adopt morecomplex design BMS and differenttechnology solution.

What is Your Application?Talk to us, Vodno Battery Experts will offer you a best solution
