CB certificate 48v lithium ion battery electric bike kitwith battery 23.4Ah with 30-40A discharge current BMS

Li ion battery is much popular in the electric bicycle industrial, Its brings us friendly environment with lot of fun world. Li ion battery pack for e-bike is lighter weight, size smaller and high energy power, It is best choice up to now.

Quantity:
Share this:

Electric bicycle

Electric motorcycle

Electric tricycle

Electric boat

Motorhome

Energy storage

RC toy

Led light

Street light

UPS

Medical Equipment

Robot

Overview

Quality + Safety = VODNO e-bike battery

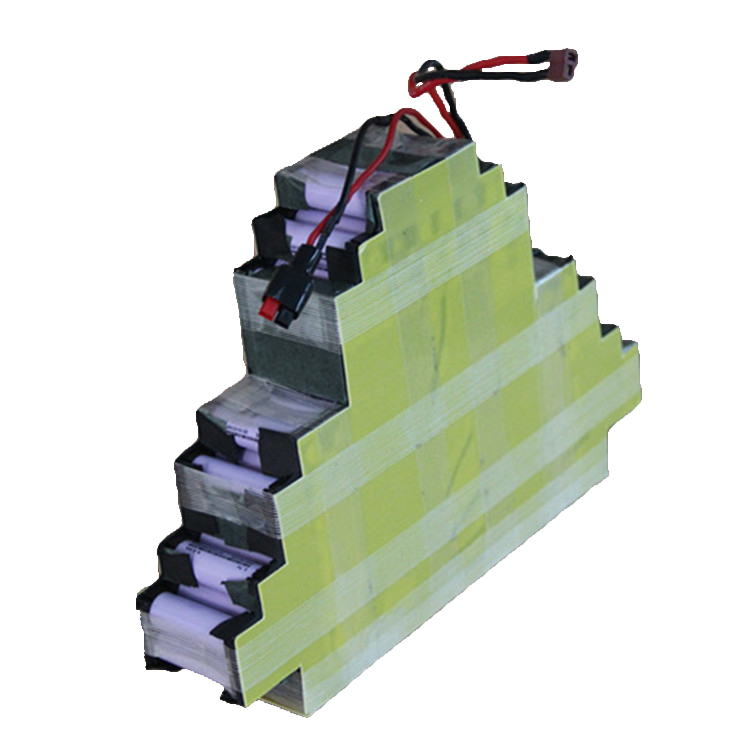

1,We are use high rate 18650 battery cell in auto level quality to make a amazing e-bike battery pack, which has reasonable internal layout in series and parallel, with automatic welding technology using formed pure nickel sheet welding.

2,Battery pack’s performance and safety depends on cells, BMS assure battery pack working in normal situation and long life span. We use high top quality BMS to protect batteries are in normal situation, extend life span, reduce the frequency of battery pack accidents.

3,We ensure that the battery pack is 100% test before shipment, inspect the internal welding spot, We ensure that each battery pack is qualified when they are arrives at the customer'.

4,We provide 1 year warranty. Our team experts are able to help you solve problem you had, we will give priority to processing.

5,CB UN KC certification are available.



Not sure which battery is right for you? No problem: our battery experts are available to assist you in making the correct choice.



Specifications

Model

VDO-LN4823 (China brand)

General Characteristics

Nominal voltage

48V (13S)

Nominal capacity@0.2C

23.4Ah

Nominal energy

1123.2Wh

Internal Resistance

240≦mΩ

Life cycle

>800 Cycles @0.2C Charging /Discharging at 90%DOD

Standard Charging





Charging voltage

54.6+/-0.2V

Charging Mode(CC/CV)

At 0℃~45℃temperature, charged to 54.6V at constant current 0.5C3A,and then at constant voltage 54.6V until the current drops to 0.5C3A

Charging Current

3A

Max.Charging Current

7.5A

Standard Discharging





Discharging Current

15A

Max.Continuous Current

35A

Max.Pulse Current

45A(<10S)

Discharging cut-off Voltage

36.4V

Operating conditions



Operating temperature

Charge

0℃~60℃

Discharge

-20℃~60℃

Storage temperature

-10℃~45℃

Water dust resistance

N/A

Structure

Casing

PVC shrinkage

Dimension

Customized

Approx.Weight

≤6.15kgs

Terminal

N/A

Application



What is Your Application?Talk to us, Vodno Battery Experts will offer you a best solution
