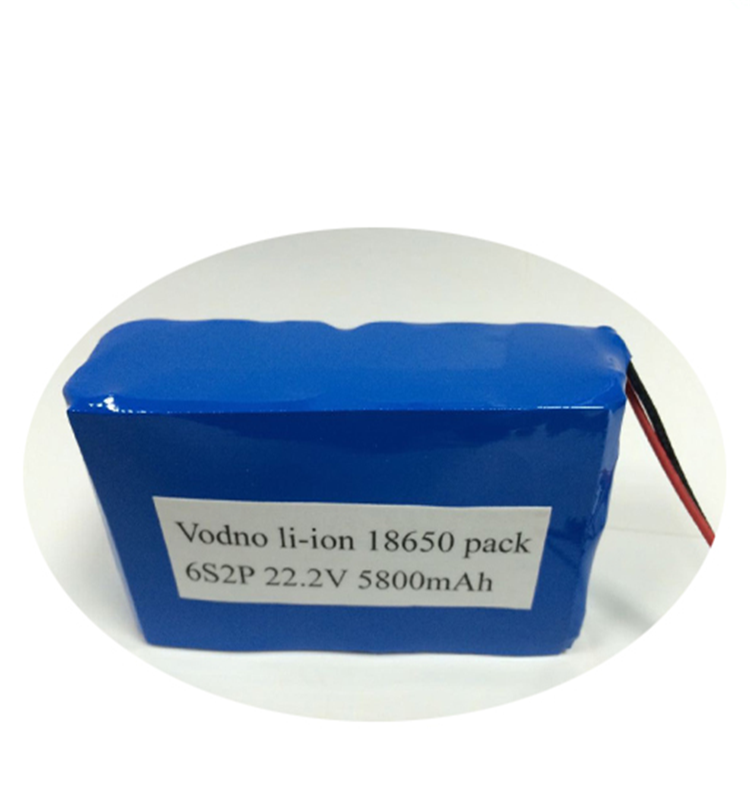

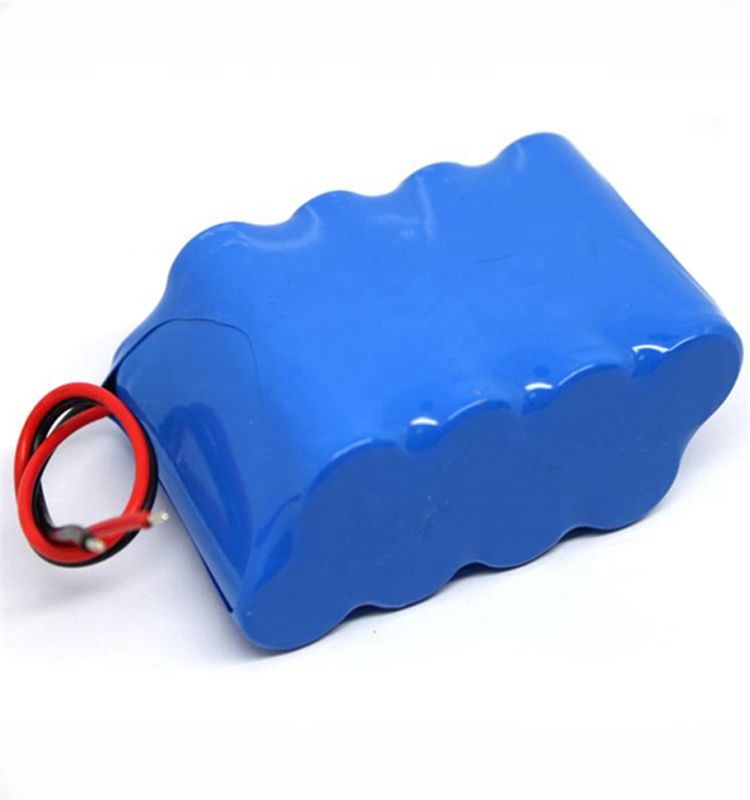

Rechargeable Li Ion 22.2v 5800mAh LG 18650 Battery Pack 6S2P With BMS

18650 Li-ion batteries are the battery of choice when designing for higher voltage and current requirements. Li-ion have relatively low self-discharge rates, and are capable of high discharge currents and better performance than nickel and lead based batteries.

Quantity:
Share this:

Electric bicycle

Electric motorcycle

Electric tricycle

Electric boat

Motorhome

Energy storage

RC toy

Led light

Street light

UPS

Medical Equipment

Robot

Overview

The customer experience is focused to provide quality products and services. we provide both custom and standard battery solutions for OEM applications. With more than 10+ years of collective experience in custom battery pack design and battery distribution, we have the knowledge and expertise to help you through your most complex design and manufacturing challenges. We offer design support for the total battery pack requiring a BMS, a PCB, Enclosure, Testing, Regulatory Support, Custom Programming, etc. for industrial, commercial, and military applications.



Why choose us :

1, Strong design and provide solution based on difference shape, capacity and voltage to match your application.
2, High quality and smart BMS/PCB build in.
3, Easy and cheap apply difference certification based on your market.
4, Rich experience to select suitable battery charger.
5, Professionally arrange to ship battery by sea or by air door to door.
6,Best price provide original China’s brand cell including BK,BYD,Lishen,Tession,etc and Samsung, lg, Panasonic,Sony cell etc.

Specifications

Typical Capacity

5800mAh          @ 0.2C Discharge

Minimum capacity

5750mAh          @ 0.2C Discharge

Nominal voltage

22.2V

Standard Charge

CC/CV,0.2C5A, 25.2V

Standard Discharge

CC,0.2C5A, 16.5V

End-of-charge Voltage

25.20V±0.1V

End-of-charge Current

0.02C5A (At CV mode)

End-of-discharge Voltage

16.5 V

Charging Time

8.0hours(standard charge) 8小时

Quick Charge Current

5800mA   (1.0C5rate)

Quick Discharge Current

11600mA   (2.0C5rate)

Max Discharge Current

17400mA   (3.0C5rate)

Initial Impedance

Max: 190mW

Weight

Approx:600±2g

Operating temperature

Charging:  0℃~45℃

Discharging:-20℃~60℃

Storage temperature

-5℃~35℃

Storage Humidity

≤75% RH

Appearance

Without scratch, distortion, contamination and leakage

Standard environmental condition



Temperature              : 25±2℃

 Humidity                :  45-75%RH

Atmospheric Pressure     : 86-106 KPA

Application

The energy storage battery is applicable for commercial or residential purposes.
