AGV (Automatic Guided Vehicle)

Powering the Future of Automation with Advanced AGV Lithium Batteries!
Instant Inquiry
Lithium battery pack for AGV automatic guided vehicle
AGV batteries must support high-rate discharge, long cycle life, wide temperature tolerance, reliable BMS performance, and safe operation. LFP and LTO are the main lithium battery chemistries used for industrial AGVs, while AGM lead-acid remains an option for some low-cost retrofit applications.
LFP is widely used for general indoor AGVs with moderate power demands and scheduled charging. LTO is better suited to frequent start-stop operation, fast charging, 24/7 production, low-temperature environments, and applications requiring long cycle life. AGM can serve budget-sensitive retrofits where fast charging is not necessary and maintenance access is available.
NMC batteries are less commonly adopted for standard industrial AGVs because of their thermal safety considerations. The table below compares AGM, LFP, and LTO across key specifications and application requirements.


SPECIFICATIONS


Item AGM Lead-acid LFP LTO
Nominal Cell Voltage 2V 3.2V 2.3V
Cycle Life 500~800 cycles 3000~6000 cycles 10,000~30,000+ cycles
Discharge Rate 0.2C~0.5C, peak 1C Continuous 0.5C~1C, peak 2~3C Continuous 2C~5C, peak up to 10C
Fast Charging Capability Poor, 8~12h full charge Moderate, 1~3h fast charge Excellent, 10~30min full charge
Operating Temperature -10~40℃ -20~55℃, with capacity loss at low temperatures -40~60℃, with excellent low-temperature performance
Energy Density Low Medium Relatively low
Safety Fair, gassing and bulging risk Good Excellent, low thermal runaway risk
Upfront Cost Lowest Medium High
Maintenance Regular inspection required Maintenance-free Maintenance-free
Typical Application Legacy AGVs, light loads, low-frequency operation Warehouse AGVs/AMRs, most production-line AGVs 24/7 operation, ports, cold-chain logistics, fast-charging AGVs

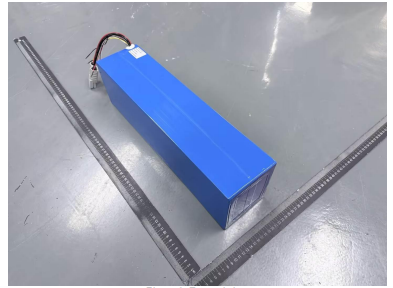

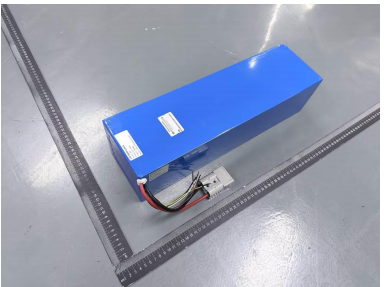

AGV battery pack dimensions 01 AGV battery pack dimensions 02

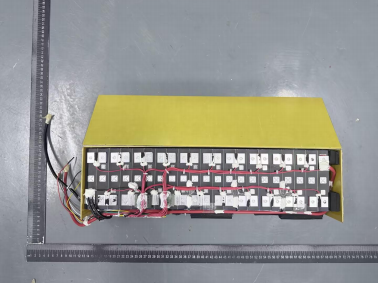

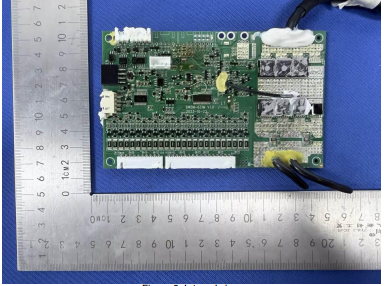

AGV battery pack dimensions 03 AGV battery pack dimensions 04

AGV BATTERY SELECTION GUIDE

Standard Warehouse AGV

  • 8~16 hours of daily operation
  • Scheduled charging during normal operation
  • LFP battery is a practical choice
  • 48V configuration
  • 0.5~1C continuous discharge capability
  • Passive balancing BMS is generally sufficient

24/7 Production Line AGV

  • Frequent start-stop operation
  • Automatic fast charging
  • LTO battery solution
  • High-rate discharge capability
  • Long cycle life for continuous operation
  • Suitable for minimizing charging downtime

Heavy-Duty AGV

  • High-load traction applications
  • High peak discharge requirements
  • Power-type LFP or LTO cells
  • Peak discharge capability should be prioritized over capacity alone
  • Suitable for heavy loads and demanding traction conditions

Explosion-Proof Workshop AGV

  • Chemical and pharmaceutical environments
  • Explosion-certified battery pack required
  • LFP is easier to adapt to explosion-proof pack designs
  • LTO can also be considered for high-performance applications
  • Lead-acid batteries are not recommended due to hydrogen evolution risk

CHARGING & ENVIRONMENT

Choose the right charging method based on AGV operating cycles. Contact fast charging supports frequent charging during production, with LTO preferred for high-frequency fast charging, while battery swap enables zero-downtime operation with LFP for cost balance and LTO for ultra-high-throughput applications.

BMS REQUIREMENTS

A reliable BMS is essential for AGV battery safety, performance, and communication. The key functions include protection, cell balancing, CAN communication, pre-charge control, and insulation monitoring.

CUSTOM BATTERY PACK ASSEMBLY

Our custom battery pack assembly process is designed to meet the specific size, performance, and integration requirements of AGV applications. From cell assembly to final pack integration, each battery pack is built for reliable operation and consistent performance.
We support customized battery pack configurations for different AGV platforms, operating environments, and power requirements.

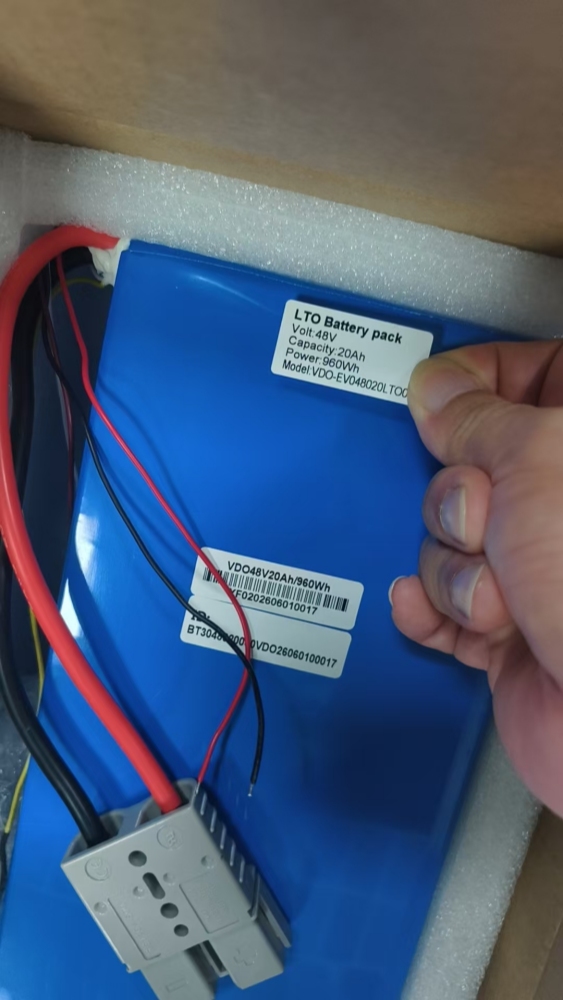

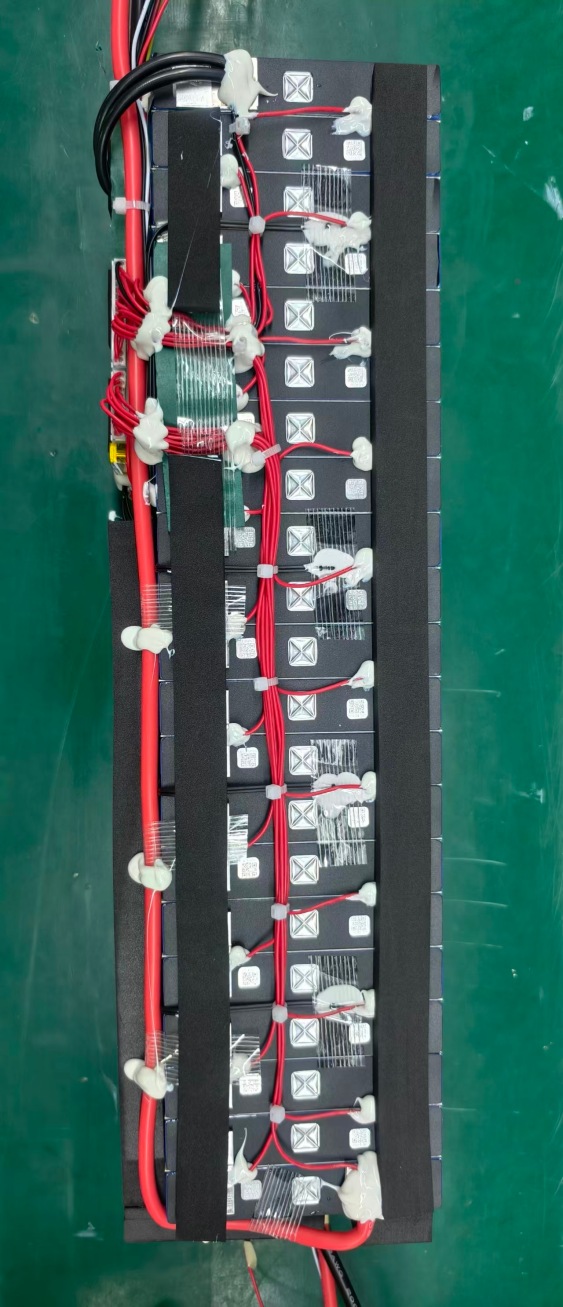

Custom AGV battery pack assembly 01 Custom AGV battery pack assembly 02

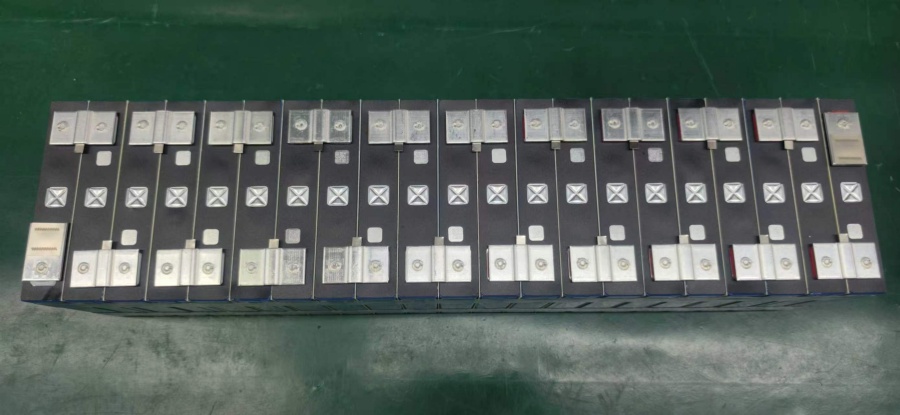

Custom AGV battery pack assembly 03

ADVANTAGE

As industries embrace automation, reliable energy solutions are crucial. Our high-performance AGV Lithium Batteries deliver:
Instant Inquiry

WHAT DOES IT BRING YOU?

It is very difficult to find the right battery supplier. BMS and battery performance were very poor. Because not all battery supplier are professional battery solution provider. They are just sell a products which could be used. but for battery pack, it is not just charging and discharging. Before workign with us, our client faced challenges with poor-quality batteries and unreliable BMS (Battery Management Systems). Their previous supplier couldn’t meet performance requirements, so they approached us cautiously—requesting a detailed review of our manufacturing process and requiring battery pack with Samsung and Toshiba cells for their sample order.
Through rigorous sample testing and iterative improvements, we proved our commitment to quality. The result is A long-term partnership built on trust.

To further support their AGV system, we

  • Developed CAN BUS-enabled LTO battery packs (with custom communication protocols)
  • Designed a smart charger for seamless system working together
  • Ensured 24/7 technical support and real-time communication

Our Services

  • Expert team for technical troubleshooting & guidance
  • Flexible post-sales improvement plans until project success
  • Authentic brand cells (Samsung, LG, Toshiba etc.) with traceable documentation
  • Global logistics solutions for hassle-free delivery
  • Powering AGVs with reliability—where quality meets innovation.

Powering AGVs with reliability—where quality meets innovation.
