Surveillance Equipment Battery Pack

Reliable Lithium Battery Power for Security Monitoring!
Instant Inquiry
Lithium Battery Pack for Surveillance Equipment

Surveillance Battery Overview

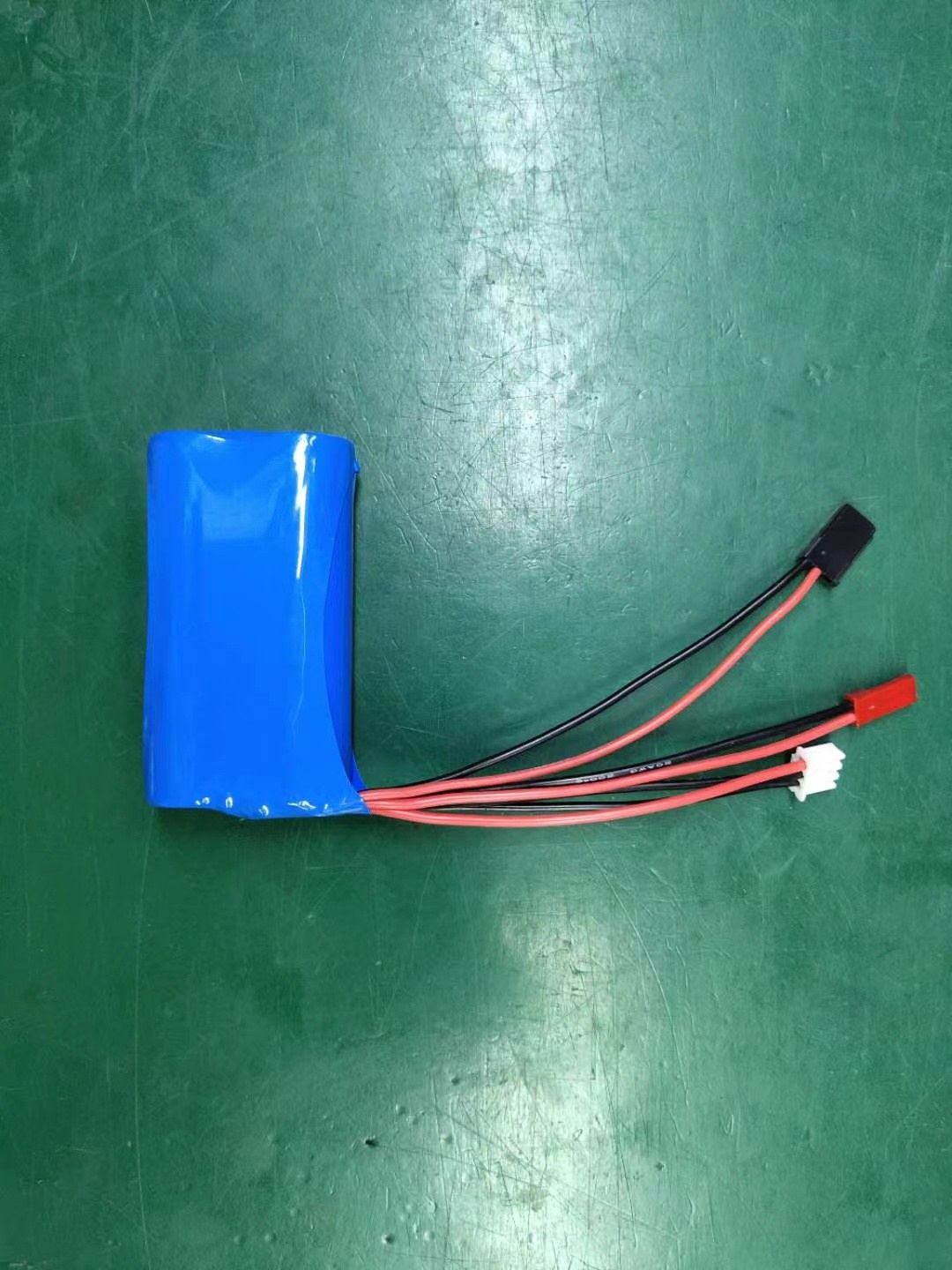

Vodno surveillance battery packs provide rechargeable power for indoor and outdoor security monitoring systems. They are suitable for compatible WiFi cameras, 4G LTE cameras, PTZ dome cameras, video doorbells and off-grid surveillance equipment.
Available voltage configurations support different camera power requirements. With lithium cells and an integrated Battery Management System (BMS), these packs offer battery protection and flexible power options for residential, commercial, agricultural and remote monitoring applications.
For installations without a stable grid supply, a compatible battery pack can be paired with an appropriate adapter or solar charging system. Capacity, output voltage, operating temperature and charging compatibility should be selected according to the camera's specifications and expected runtime.

SPECIFICATIONS

Item 5V Version 7.4V Version 12V Version Notes
Battery Structure 1S Li-ion with boosted 5V output 2S Li-ion (2 × 3.7V cells) 3S Li-ion or 4S LiFePO4 Cell configuration depends on the selected model.
Nominal Voltage 3.7V cell; 5V output 7.4V 12V nominal configuration Match the pack output to the camera's rated input.
Full Charge Voltage 4.2V cell voltage 8.4V 12.6V for 3S Li-ion; 14.6V for 4S LiFePO4 Use a charger or solar charging controller matched to the battery chemistry and configuration.
Discharge Cut-off Voltage 2.75V cell voltage 6.0V 9.0V for 3S Li-ion; 10.0V for 4S LiFePO4 Confirm the actual cut-off settings for the selected pack.
Typical Applications Low-power WiFi cameras and video doorbells Compatible portable 4G or WiFi cameras Compatible bullet cameras, PTZ cameras and site monitoring systems Check both voltage and current requirements before selection.
Continuous Discharge Depends on cell specifications, BMS ratings and pack design. Higher voltage alone does not mean higher discharge capability.
Charging Method Compatible 5V charging input or matched solar system Compatible 8.4V charger or matched solar system Charger or solar system matched to the battery configuration Solar charging requires a compatible charging controller where applicable.
Operating Temperature -20°C to +60°C* -20°C to +60°C* -20°C to +60°C* *Confirm the permitted range for the selected model and charging conditions.
BMS Protection Overcharge, over-discharge, overcurrent and short-circuit protection; over-temperature protection where supported. Protection functions vary by model.

Important Reminders

1. Check your camera's rated input voltage and current requirements before choosing a battery pack. An incompatible supply may damage the equipment.
2. Actual runtime depends on battery capacity, camera power consumption, infrared activity, network use and ambient temperature.
3. Confirm cell grade, capacity, BMS functions and test requirements with the supplier for your selected model.
4. Use only a compatible charger. Never use a charger intended for a different battery voltage or chemistry.

Customization Available

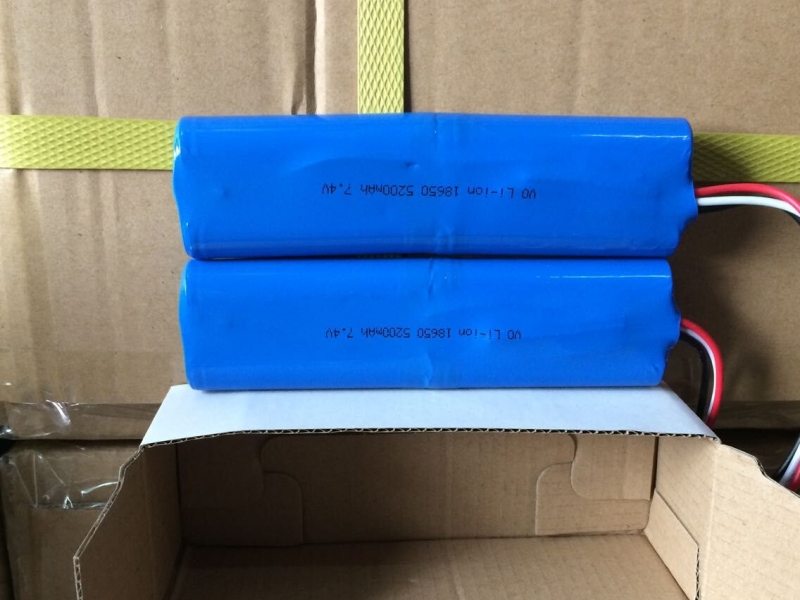

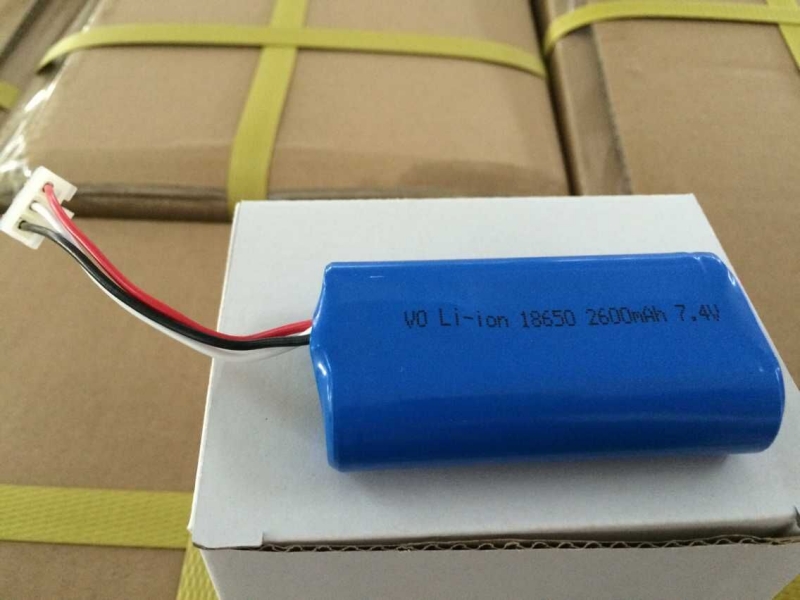

Custom battery capacity, connectors, cable lengths, housing and OEM logo are available for project requirements. Minimum order quantity for customized packs: 500 pcs. Project-specific parameters can be reviewed according to the surveillance system's electrical and installation requirements.

Not Suitable For

• High-continuous-power equipment without prior load matching
• Sealed indoor spaces with inadequate ventilation
• Underwater or submerged use unless the complete battery assembly has a suitable waterproof enclosure

BATTERY APPLICATIONS

Reliable golf cart batteries provide stable power for transportation, utility and recreational vehicles across a wide range of outdoor and commercial environments.

48V LiFePO4 Golf Cart Battery Specifications

The 48V LiFePO4 golf cart battery is designed to provide stable power, fast charging and reliable performance for 48V electric golf carts. Available in multiple capacity options, it supports different driving range and operating requirements.
With a nominal voltage of 51.2V, intelligent BMS protection and high continuous discharge capability, this lithium golf cart battery is suitable for Club Car, EZGO, Yamaha, ICON and most mainstream 48V golf cart platforms.
48V LiFePO4 Golf Cart Battery
48V LiFePO4 Golf Cart Battery
Specification Details
Nominal Voltage 51.2V
Full Charge Voltage 58.4V
Discharge Cut-off Voltage 40V
Nominal Capacity 60Ah/80Ah/100Ah/105Ah
Rated Energy 3.07kWh/4.10kWh/5.12kWh/5.38kWh
Standard Charge Current 0.5C
Max Continuous Discharge Current 100A–120A
Peak Discharge Current 180A (3s)
Cycle Life 4000–6000 cycles @ 0.5C
Charging Time 3–4 hours with matched lithium charger
Operating Temperature Charge: 0°C–45°C; Discharge: -20°C–60°C
Protection System Smart BMS with full protection and temperature monitoring
Compatibility Club Car, EZGO, Yamaha, ICON and most 48V golf carts

GOLF CART BATTERY SELECTION GUIDE

Voltage

  • 36V and 48V for most standard golf carts
  • 60V and 72V for high-speed and heavy-duty vehicles
  • Battery voltage must match the vehicle system
  • Incorrect voltage may affect the controller and motor
  • Designed to match mainstream golf cart platforms

Capacity

  • 60Ah to 80Ah for personal and low-frequency use
  • 100Ah to 105Ah for commercial and fleet applications
  • Higher capacity provides longer operating time
  • Capacity selection should match daily driving requirements
  • Choose according to vehicle load and usage frequency

Battery Type

  • LiFePO4 chemistry for golf cart applications
  • Long cycle life for frequent daily operation
  • Maintenance-free design reduces routine battery care
  • Low self-discharge supports longer storage periods
  • Stable discharge performance across outdoor applications

Compatibility

  • Compatible with Club Car golf carts
  • Suitable for EZGO golf cart models
  • Compatible with Yamaha golf carts
  • Suitable for ICON and other mainstream models
  • Check voltage, dimensions and connection requirements before replacement

DIFFERENT BATTERY MODELS

Vodno provides battery models with different capacities and configurations to meet the power requirements of electric forklifts, AGVs, logistics vehicles and golf carts.
Specification Electric Forklift AGV Vehicle Logistics Vehicle Golf Cart
Battery Model 51.2V 195Ah 51.2V 170Ah 51.2V 100Ah 51.2V 120Ah
Nominal Voltage 51.2V 51.2V 51.2V 51.2V
Rated Capacity 194.4Ah 169.2Ah 100.8Ah 120Ah
Communication CAN RS485 CAN CAN
Energy 9953Wh 8663Wh 5160Wh 6144Wh
Size 660×400×410mm 645×365×275mm 558×473×292mm 900×350×200mm
Charge Voltage 57.6±0.15V 57.6±0.15V 57.6±0.15V 57.6±0.15V
Discharge End Voltage 40V 40V 40V 40V
Charge Current ≤100A ≤40A ≤40A ≤24A
Discharge Current 200A 80A 100A 60A
Protection Overcharge, Overdischarge, Temperature, Balance, Communication
Battery models for different vehicle applications

ADVANTAGE

Vodno provides reliable lithium battery packs for security cameras and surveillance systems, supporting stable power and flexible charging for indoor and outdoor monitoring.
Instant Inquiry

WHY CHOOSE VODNO SURVEILLANCE EQUIPMENT BATTERY?

Reliable battery power is essential for security cameras and surveillance systems, especially in remote locations where frequent battery replacement or access to grid power may be difficult. Cell quality, power management, safety protection and charging compatibility all influence battery performance in daily monitoring.
Vodno provides lithium battery packs for WiFi cameras, 4G surveillance devices, PTZ cameras and off-grid monitoring systems, with multiple voltage options and customizable configurations to meet different equipment requirements.

High-Capacity Cells and Quality Control

  • Grade A lithium cells with consistent capacity performance
  • Low capacity attenuation during repeated charge and discharge cycles
  • High- and low-temperature testing, continuous discharge testing and aging checks
  • Capacity selection based on device power consumption and runtime requirements

Stable Power and Intelligent Management

  • Voltage configuration matched to the surveillance device's input requirements
  • Designed to provide stable power for compatible monitoring equipment
  • Low-power sleep mode for reduced standby consumption, where supported
  • Runtime depends on battery capacity, camera load, infrared use and ambient temperature

Battery Safety and Protection

  • BMS protection against overcharge and over-discharge
  • Overcurrent and short-circuit protection
  • Over-temperature protection where supported by the selected model
  • Use a compatible charger to help prevent electrical damage

Outdoor Use and Flexible Charging

  • Battery options for compatible indoor and outdoor surveillance devices
  • Operating temperature options according to battery specifications
  • Adapter or solar charging configurations, subject to model compatibility
  • Custom capacity, connectors, cable lengths, housing and OEM logo
