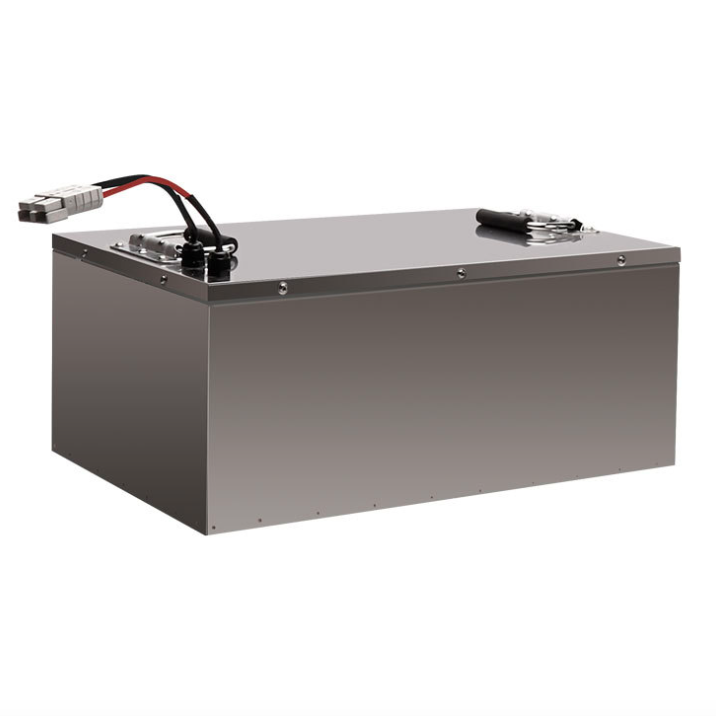

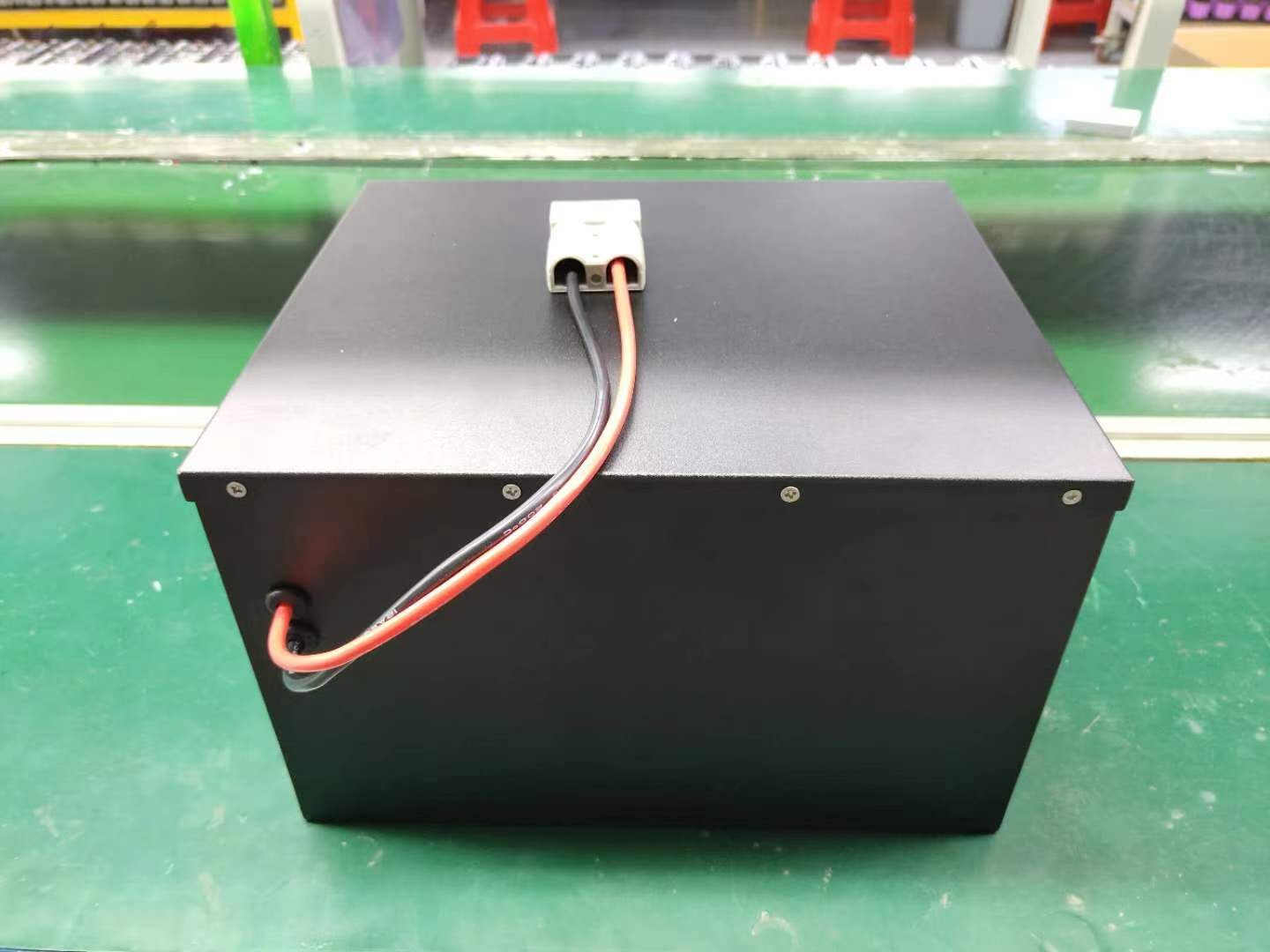

Lifepo4 72v 39ah Lithium Ion Battery Pack For 3 Wheel Vehicle

LIFEPO4 is the more efficient technology batteries , knocking out traditional lead acid batteries . VODNO provides a complete line of 12 ,24 and 48 volt batteries for use inRVS , Boats , Evs and off-grid applications and much more.

Quantity:

Overview

VODNO innovative technology built to your product standards . We approach every OEM partnership with openness so we can understand your needs and you can understand ourcompetencies , standards and commitment to delivery .From engineering and design to development teams that prioritize performance andcustomer experience , trust VODNO to be your single source partner to deliver the custom battery solution that achieves your vision . When you re looking for a trustworthy partner tobuild your custom product , let our experts reduce development risk and bring a high-quality product to market faster for you .

Specifications

Model		VDO7239
General Characteristics
Nominal voltage		76.8V
Nominal capacity@0.2C		39Ah
Min.capacity@0.2C		38Ah
Nominal energy		3416.4Wh
Dimensions(WDH)		230270240mm
Approx. weight(exclude cabinet)		25.5Kg
Battery connection		24S6P
Electrical Characteristics
Operating voltage range		60V~87.6V
Recommended charging voltage		87.6V
Max. charging current		20A
Max.continuous discharge current		30A
Max.peak discharge current		60A,<3S
Discharging cut-off voltage		60v
Faraday charging efficiency		≥98%
Energy charging efficiency		≥92%
Operating conditions
Operating temperature	Charge	0℃～60℃
	Discharge	－20℃～60℃
Storage temperature		－10℃～60℃
Storage duration		12Months @20℃~25℃
Water dust resistance		IP65
Lifecycle times		2000 at 80% DOD
