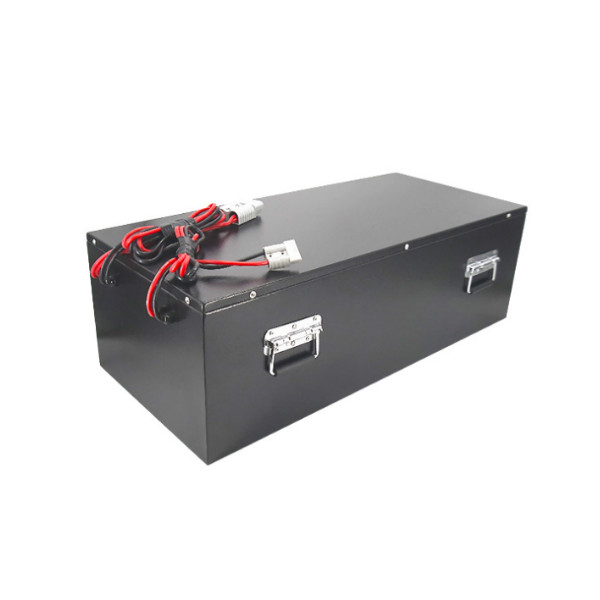

Rechargeable 24v 200ah lifepo4 lithium battery solar energy use

LiFePO4 is the more efficient technology batteries, knocking out traditional lead acid batteries . VODNO provides a complete line of 12, 24 and 48 volt batteries for use in RV’s, Boats, EV's and off-grid applications and much more.

Quantity:
Share this:

Electric bicycle

Electric motorcycle

Electric tricycle

Electric boat

Motorhome

Energy storage

RC toy

Led light

Street light

UPS

Medical Equipment

Robot

Overview

lithium batteries provide up to 10 times longer life than lead-acid batteries, and they still provide 80% of rated capacity after 2,000 cycles. Most lithium-ion batteries last five years or more. The average lead-acid battery lasts just two years. Lead-acid batteries also need to be maintained, requiring water replacement to avoid structural damage; if they aren’t maintained properly, their life span is shortened even further. Because lithium batteries require no active maintenance, a one-time purchase guarantees longevity.

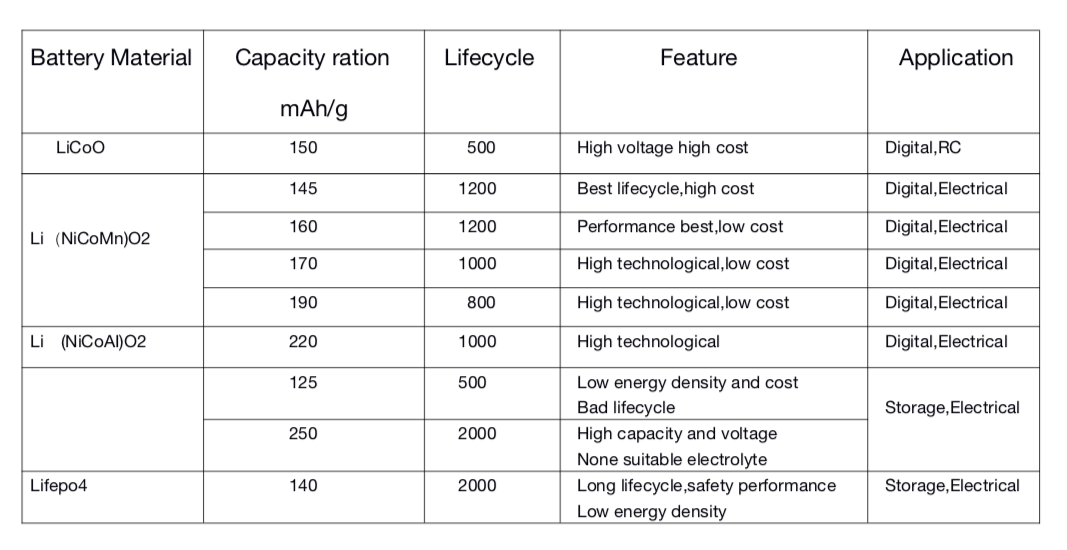

 How to make a decision for difference of battery materail

Specifications

Model

24V 200Ah 5.12kWh

Nominal voltage

25.6V

Nominal capacity@0.2C

200Ah

Dimensions(W*D*H)

L ≤600mm,W ≤280mm,H ≤218mm

Battery connection

8S34P

Recommended charging voltage

29.2V

Max. charging current

100A

Max.continuous discharge current

200A

Max.peak discharge current

300A ( <5S)

Discharging cut-off voltage

20V

Operating temperature

Charge

0℃~45℃

Discharge

-10℃~60℃

Storage temperature

-10℃~60℃

Storage duration

12Months @20℃~25℃

Water dust resistance

IP30

Weight

55KGS

Lifecycle times

>2000 Cycles ( 0.2C 80% DOD)

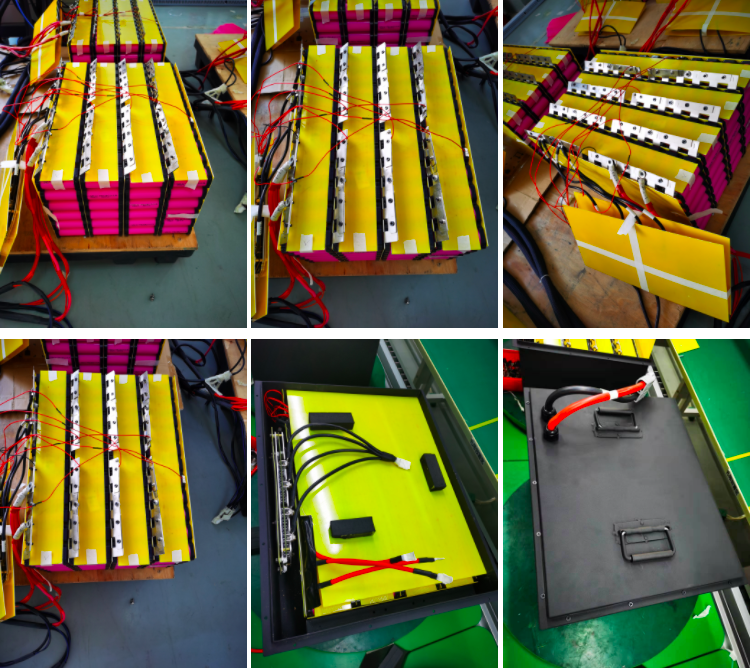

Details

The energy storage battery is applicable for commercial or residential purposes.

1.Solar Energy Storage  2.Solar Street lighting  3.Light Electric Vehicle  4.E-bike/E-Rickshaw  5.Golf Cart  6.UPS





About Us

Vodno Technology Co., Ltd. was founded in 2010, the predecessor of the lithium material, electric bike battery, and the core production-based manufacturers, after nearly seven years of development, has developed into a product design and development, battery solutions and electronic circuit program Design, battery production and quality control, sales in one of the high-tech Co., Ltd., and become the battery industry's leading enterprises. Vodno take a senior engineer of the engineering and technical team as the core,after the years of practice summed up a set of highly efficient and accurate design standards and production management practices to ensurethat each design, each product is uncompromising attention to excellence. "Treat every client with sincerity, implement every promise" is Vodno's corporate culture, scientific management, rigorous attitude, high-quality elite to Vodno brought rapid growth, won the recognition of overseas customers around the world.Now, Vodno Technology Co., Ltd. has more than 20 countries and regions around the world with a number of well-known enterprises to cooperate, many of them like "Foxconn" the world's top 500 enterprises, and most products have been CE, ROHS, UN, etc. International Standard Certification. Today, Vodno has grown into a trusted gold supplier in the battery industry.

Warranty

VODNO promise customer 3 years warranty based on battery performance,any unqualified battery are credit replacement within 3 years, no extra maintenance fees. but VODNO has no obligation under this Limited Warranty for Product subjected to the following conditions (including but not limited to):

  • Damage caused during shipping or mishandling of the Product

  • Damage due to improper installation; loose terminal connections, under-sized cabling, incorrect series (cannot be used in series) or parallel connections, reverse polarity connections or insufficient space for airflow

  • Environmental damage such as inappropriate storage conditions as defined by the VODNO, exposure to extreme hot or cold temperatures, fire or freezing, or water damage, impact or collision

  • Damage due to improper operation or maintenance such as under- or over- charging the Product, cold temperature charging, lack of cleaning resulting in corroded terminal connections or build-up of dirt, debris, organic matter, fossil fuels or chemicals on the Product casing

  • Improper use of CAN cables such as improper connections or not connecting them

  • Installing CAN communication devices that do not follow the appropriate CANbus guidelines as defined by the VODNO

  • Product that has been opened, modified or tampered with

  • Tampering or removal of manufacture date codes

  • Product that was used for applications other than which it was designed and intended for by the VODNO

  • Product that was under-sized for the application

This Limited Warranty does not cover a Product that has reached its normal end of life due to usage which may occur prior to the Warranty Period. A battery can deliver only a fixed amount of Energy over its life which will occur over different periods of time depending on the application. The Manufacturer reserves the right to deny a warranty claim if the Product is determined, upon inspection, to be at its normal end of life even if within the Warranty Period.



What is Your Application?Talk to us, Vodno Battery Experts will offer you a best solution
