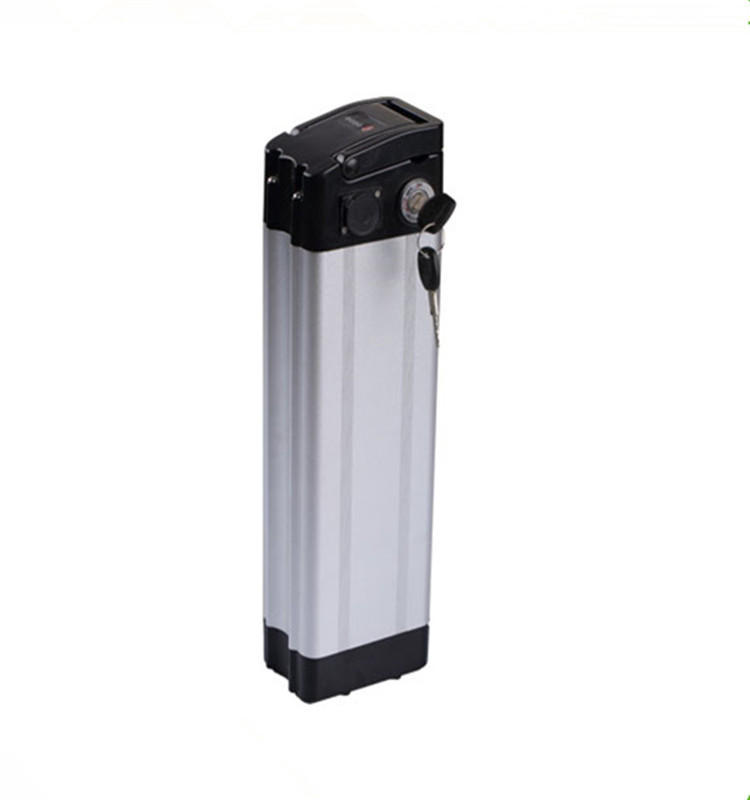

36v 10Ah Silver Fish Electric Bicycle Battery Pack

18650 Li-ion batteries are the battery of choice when designing for higher voltage and current requirements. Li-ion have relatively low self-discharge rates, and are capable of high discharge currents and better performance than nickel and lead based batteries.

Quantity:
Share this:

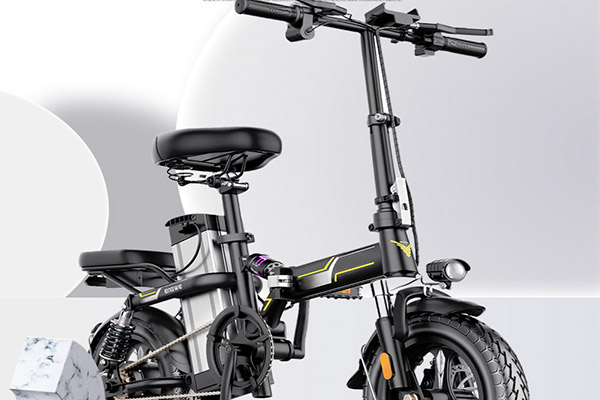

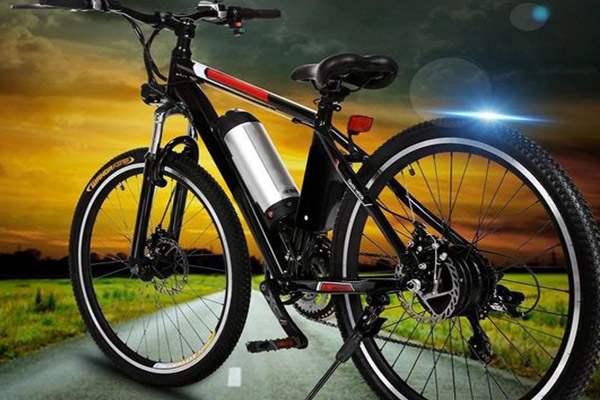

Electric bicycle

Electric motorcycle

Electric tricycle

Electric boat

Motorhome

Energy storage

RC toy

Led light

Street light

UPS

Medical Equipment

Robot

Overview

Quality + Safety = VODNO e-bike battery

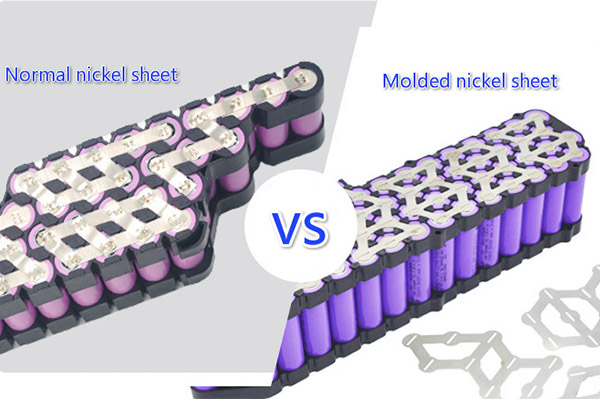

1,We are use high rate 18650 battery cell in auto level quality to make a amazing e-bike battery pack, which has reasonable internal layout in series and parallel, with automatic welding technology using formed pure nickel sheet welding.

2,Battery pack’s performance and safety depends on cells, BMS assure battery pack working in normal situation and long life span. We use high top quality BMS to protect batteries are in normal situation, extend life span, reduce the frequency of battery pack accidents.

3,We ensure that the battery pack is 100% test before shipment, inspect the internal welding spot, We ensure that each battery pack is qualified when they are arrives at the customer'.

4,We provide 1 year warranty. Our team experts are able to help you solve problem you had, we will give priority to processing.

5,CB UN KC certification are available.

Not sure which battery is right for you? No problem: our battery experts are available to assist you in making the correct choice.



Sliver Fish

Voltage

Configuration

Battery capacity



24v

7S

14Ah-24Ah



36v

10S

10Ah-20Ah



48v

13S

8Ah-17Ah

Pls kindly contact sales person who are able to help you to choose suitable capacity based on your equipment.



Specifications

Model

VDO-Li3612    ( China brands )

General Characteristics

Nominal voltage

36V (10S5P)

Nominal capacity@0.2C

12.5Ah

Nominal energy

450Wh

Internal Resistance

200≦mΩ

Life cycle

>600 Cycles @0.2C Charging /Discharging at 90%DOD

Standard Charging

Charging voltage

42.0+/-0.2V

Charging Mode(CC/CV)

At 0℃~45℃temperature, charged to 42V at constant current 0.5C3A,and then at constant voltage 42V until the current drops to 0.5C3A

Charging Current

3A

Max.Charging Current

5A

Standard Discharging

Discharging Current

10A

Max.Continuous Current

15A

Max.Pulse Current

30A(<3S)

Discharging cut-off Voltage

28V

Operating conditions

Operating temperature

Charge

0℃~60℃

Discharge

-20℃~60℃

Storage temperature

-10℃~45℃

Water dust resistance

N/A

Structure

Casing

Hailong A

Dimension

N/A

Approx.Weight

≤4.25kgs

Application

The energy storage battery is applicable for commercial or residential purposes.



What is Your Application?Talk to us, Vodno Battery Experts will offer you a best solution
