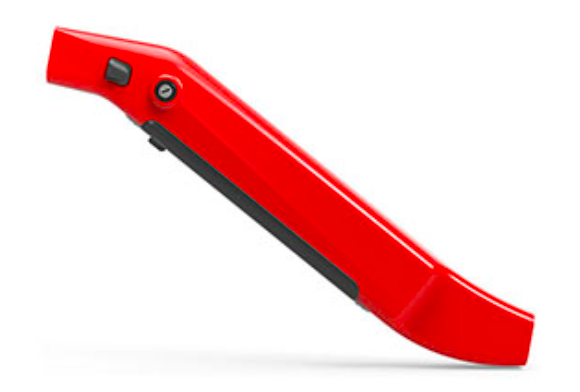

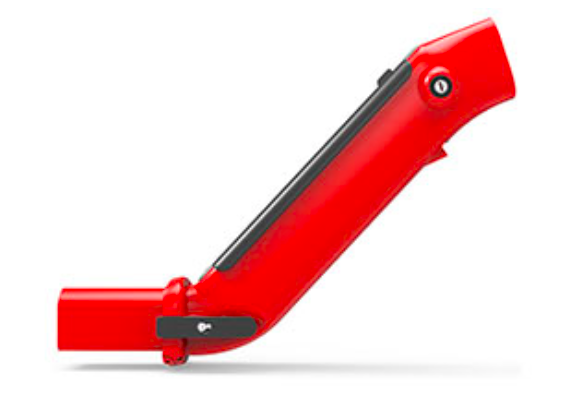

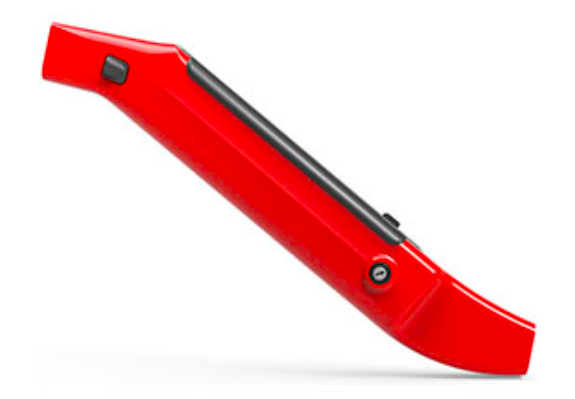

36v 17.5Ah E-bike Lithium Ion Battery Using Samsung 18650 35ET Cell

18650 Li-ion batteries are the battery of choice when designing for higher voltage and current requirements. Li-ion have relatively low self-discharge rates, and are capable of high discharge currents and better performance than nickel and lead based batteries.

Quantity:
Share this:

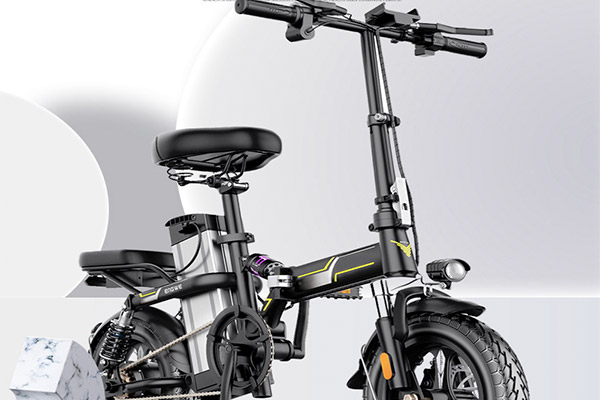

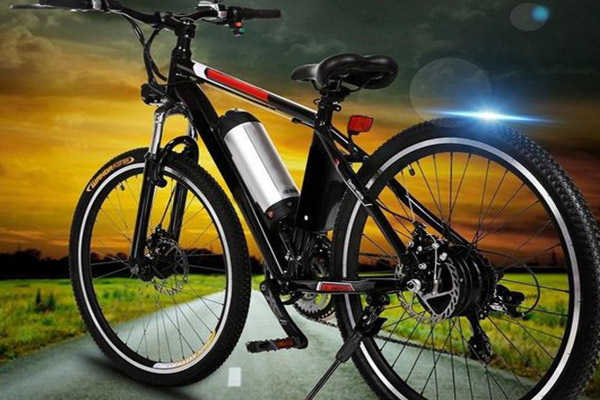

Electric bicycle

Electric motorcycle

Electric tricycle

Electric boat

Motorhome

Energy storage

RC toy

Led light

Street light

UPS

Medical Equipment

Robot

Overview

Quality + Safety = VODNO e-bike battery

E-bike lithium battery packs are available in several chemistries, You could make a decision according to your market.

Lithium cobalt oxide provides the greatest energy density

Lithium manganese offers greater safety with lower energy density than lithium cobalt oxide

Lithium iron phosphate provides high discharge rate capabilities, as well as long cycle and calendar life



Why choose us :

1, Strong design and provide solution based on difference shape, capacity and voltage to match your application.
2, high quality OEM logo or sticker.
3, Easy and cheap apply difference certification based on your market.
4, Rich experience to select suitable battery charger.
5, Professionally arrange to ship battery by sea or by air door to door.
6, Best price provide original China’s brand cell including BK,BYD,Lishen,Tession,etc and Samsung, lg, Panasonic,Sony cell etc.



Battery pack configuration:

Rhino

Voltage

Configuration

Battery capacity



36v

10S

17.5Ah-24.5Ah



48v

13S

14Ah-17.5Ah

Pls kindly contact sales person who are able to help you to choose suitable capacity based on your equipements.



Specifications

Model

VDO-Li3617.5 ( Samsung 35ET 3500mah)

General Characteristics

Nominal voltage

36V (10S5P)

Nominal capacity@0.2C

17.5Ah

Nominal energy

630Wh

Internal Resistance

200≦mΩ

Life cycle

>600 Cycles @0.2C Charging /Discharging at 90%DOD until 70% Capacity

Standard Charging

Charging voltage

42.0+/-0.2V

Charging Mode(CC/CV)

At 0℃~45℃temperature, charged to 42V at constant current 0.5C3A,and then at constant voltage 42V until the current drops to 0.5C3A

Charging Current

3A

Max.Charging Current

5A

Standard Discharging

Discharging Current

10A

Max.Continuous Current

15A

Max.Pulse Current

30A(<3S)

Discharging cut-off Voltage

28V

Operating conditions

Operating temperature

Charge

0℃~60℃

Discharge

-20℃~60℃

Storage temperature

-10℃~45℃

Water dust resistance

N/A

Structure

Casing

Customer provided

Approx.Weight

≤3.78kgs

BMS function

CAN communication

Yes/No

Application

The energy storage battery is applicable for commercial or residential purposes.



About Us

Vodno Technology Co., Ltd. was founded in 2010, the predecessor of the lithium material, electric bike battery, and the core production-based manufacturers, after nearly seven years of development, has developed into a product design and development, battery solutions and electronic circuit program Design, battery production and quality control, sales in one of the high-tech Co., Ltd., and become the battery industry's leading enterprises. Vodno take a senior engineer of the engineering and technical team as the core,after the years of practice summed up a set of highly efficient and accurate design standards and production management practices to ensurethat each design, each product is uncompromising attention to excellence. "Treat every client with sincerity, implement every promise" is Vodno's corporate culture, scientific management, rigorous attitude, high-quality elite to Vodno brought rapid growth, won the recognition of overseas customers around the world.Now, Vodno Technology Co., Ltd. has more than 20 countries and regions around the world with a number of well-known enterprises to cooperate, many of them like "Foxconn" the world's top 500 enterprises, and most products have been CE, ROHS, UN, etc. International Standard Certification. Today, Vodno has grown into a trusted gold supplier in the battery industry.

FAQ

1)When Can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, Pls call us or tell us in your email so that we will regard your inquiry priority


2)How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. If you just need a blank sample to check the design and paper quality, we will provide you sample for free, as long as you afford the express freight


3) How long can I expect to get the sample?
After you pay the sample charge and send us Confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account


4) How long does the whole procedure being worked out?
After you place a order, the production handling time is bout 25-30 days. We need 7 days to prepare all the stuff then 30 days for manufacturing


5)What about the transportation and delivery date?
Normally we use shipment to transport the goods. It is about 25-40 days. It also depends on which country and port you are. It could be shorter if you need to send the goods like Asian. If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense


6)How to payment for order?
Contact sales person and ask Pl for your payment, the account should be listed in Pl, That is our company account

What is Your Application?Talk to us, Vodno Battery Experts will offer you a best solution
