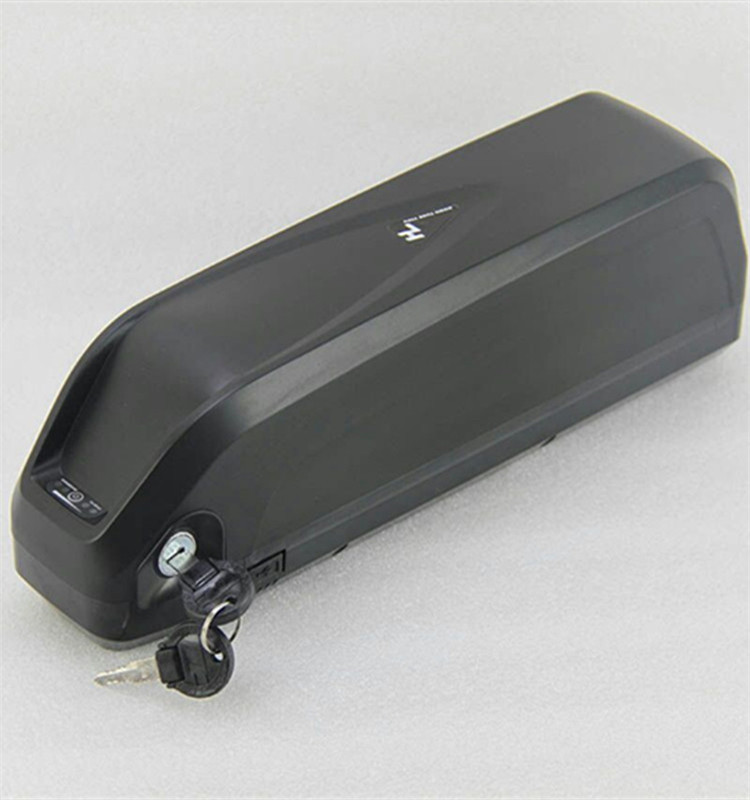

36v 12.5Ah Hailong Battery Pack With China Brand Cell 2500mah

Li ion battery is much popular in the electric bicycle industrial, Its brings us friendly environment with lot of fun world. Li ion battery pack for e-bike is lighter weight, size smaller and high energy power, It is best choice up to now.

Quantity:

Overview

Quality + Safety = VODNO e-bike battery

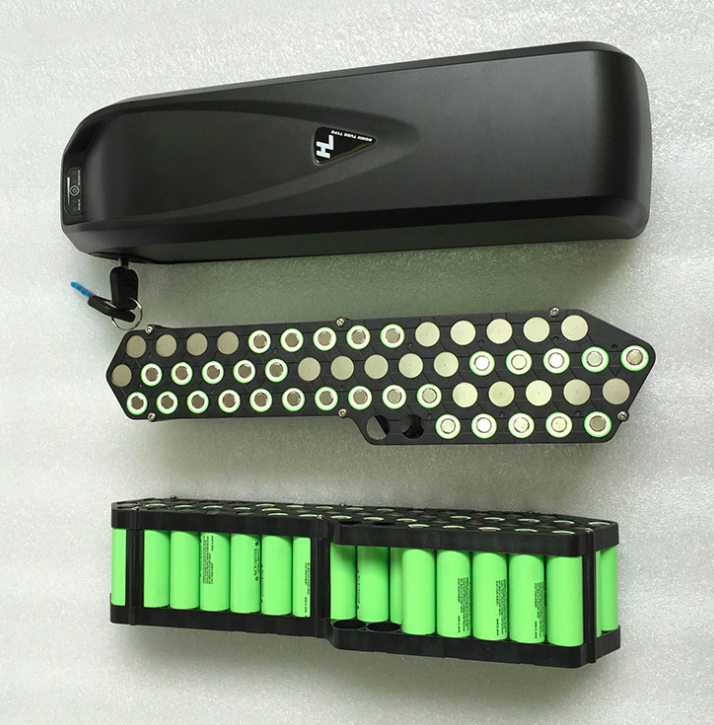

1,We are use high rate 18650 battery cell in auto level quality to make a amazing e-bike battery pack, which has reasonable internal layout in series and parallel, with automatic welding technology using formed pure nickel sheet welding.

2,Battery pack’s performance and safety depends on cells, BMS assure battery pack working in normal situation and long life span. We use high top quality BMS to protect batteries are in normal situation, extend life span, reduce the frequency of battery pack accidents.

3,We ensure that the battery pack is 100% test before shipment, inspect the internal welding spot, We ensure that each battery pack is qualified when they are arrives at the customer'.

4,We provide 1 year warranty. Our team experts are able to help you solve problem you had, we will give priority to processing.

5,CB UN KC certification are available.

Not sure which battery is right for you? No problem: our battery experts are available to assist you in making the correct choice.

Hailong Model	Voltage	Configuration	Battery capacity
Hailong Model	Voltage	Configuration	Battery capacity
A	24v	7S	14Ah-24.5Ah
A	36v	10S	10Ah-17.5Ah
A	48v	13S	8Ah-14Ah
Pls kindly contact sales person who are able to help you to choose suitable capacity based on your equipements.

Specifications

Model		VDO-Li3612 ( China brands )
General Characteristics
Nominal voltage		36V (10S5P）
Nominal capacity@0.2C		12.5Ah
Nominal energy		450Wh
Internal Resistance		200≦mΩ
Life cycle		>600 Cycles @0.2C Charging /Discharging at 90%DOD
Standard Charging
Charging voltage		42.0+/-0.2V
Charging Mode(CC/CV)		At 0℃~45℃temperature, charged to 42V at constant current 0.5C3A，and then at constant voltage 42V until the current drops to 0.5C3A
Charging Current		3A
Max.Charging Current		5A
Standard Discharging
Discharging Current		10A
Max.Continuous Current		15A
Max.Pulse Current		30A（<3S)
Discharging cut-off Voltage		28V
Operating conditions
Operating temperature	Charge	0℃～60℃
	Discharge	－20℃～60℃
Storage temperature		-10℃～45℃
Water dust resistance		N/A
Structure
Casing		Hailong A
Dimension		N/A
Approx.Weight		≤4.25kgs
