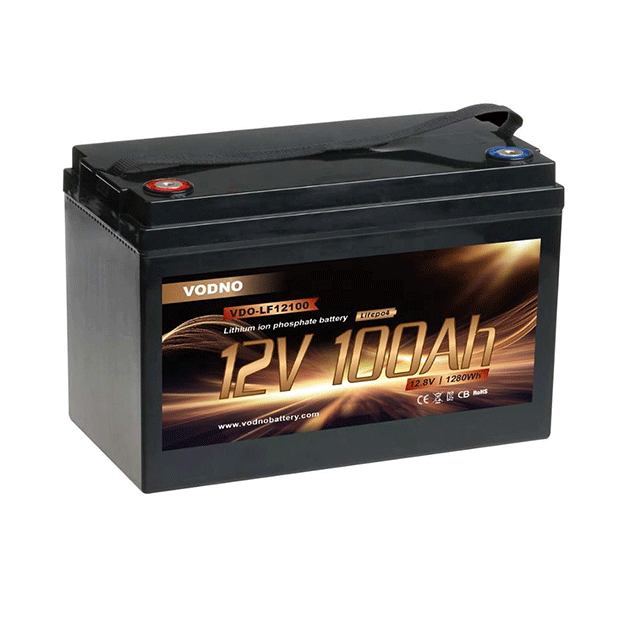

Lifepo4 12v 100Ah Lithium Ion Battery Pack With BMS

LiFePO4 is the more efficient technology batteries, knocking out traditional lead acid batteries . VODNO provides a complete line of 12, 24 and 48 volt batteries for use in RV’s, Boats, EV's and off-grid applications and much more.

Quantity:
Share this:

Electric bicycle

Electric motorcycle

Electric tricycle

Electric boat

Motorhome

Energy storage

RC toy

Led light

Street light

UPS

Medical Equipment

Robot

Overview

lithium batteries provide up to 10 times longer life than lead-acid batteries, and they still provide 80% of rated capacity after 2,000 cycles. Most lithium-ion batteries last five years or more. The average lead-acid battery lasts just two years. Lead-acid batteries also need to be maintained, requiring water replacement to avoid structural damage; if they aren’t maintained properly, their life span is shortened even further. Because lithium batteries require no active maintenance, a one-time purchase guarantees longevity.



Specifications

Model VDO-LF12100
General Characteristics
Nominal voltage 12.8V
Nominal capacity@0.2C 100Ah
Nominal energy 1280Wh
Internal Resistance 45≦mΩ
Life cycle >2000Cycles @0.2C Charging /Discharging at 90%DOD
Self-Discharge ≤3.5%per month at 25℃
Standard Charging
Charging voltage 14.6+/-0.2V
Charging Mode(CC/CV) At 0℃~45℃temperature, charged to 14.6V at constant current 0.2C5A,and then at constant voltage 14.6V until the current drops to 0.02C5A
Charging Current 20A
Max.Charging Current 50A
Standard Discharging
Discharging Current 20A
Max.Continuous Current 100A
Max.Pulse Current 200A(<3S)
Discharging cut-off Voltage 10.0V
Operating conditions
Operating temperature Charge 0℃~45℃
Discharge -20℃~60℃
Storage temperature 0℃~45℃
Water dust resistance IP56
Structure
Casing ABS
Dimension 328*172*215*220mm
Approx.Weight 13.1kgs
Terminal M8

Application

The energy storage battery is applicable for commercial or residential purposes.

1.Solar Energy Storage  2.Solar Street lighting  3.Light Electric Vehicle  4.E-bike/E-Rickshaw  5.Golf Cart  6.UPS

Warranty

VODNO promise customer 3 years warranty based on battery performance,any unqualified battery are credit replacement within 3 years, no extra maintenance fees. but VODNO has no obligation under this Limited Warranty for Product subjected to the following conditions (including but not limited to):

  • Damage caused during shipping or mishandling of the Product

  • Damage due to improper installation; loose terminal connections, under-sized cabling, incorrect series (cannot be used in series) or parallel connections, reverse polarity connections or insufficient space for airflow

  • Environmental damage such as inappropriate storage conditions as defined by the VODNO, exposure to extreme hot or cold temperatures, fire or freezing, or water damage, impact or collision

  • Damage due to improper operation or maintenance such as under- or over- charging the Product, cold temperature charging, lack of cleaning resulting in corroded terminal connections or build-up of dirt, debris, organic matter, fossil fuels or chemicals on the Product casing

  • Improper use of CAN cables such as improper connections or not connecting them

  • Installing CAN communication devices that do not follow the appropriate CANbus guidelines as defined by the VODNO

  • Product that has been opened, modified or tampered with

  • Tampering or removal of manufacture date codes

  • Product that was used for applications other than which it was designed and intended for by the VODNO

  • Product that was under-sized for the application

This Limited Warranty does not cover a Product that has reached its normal end of life due to usage which may occur prior to the Warranty Period. A battery can deliver only a fixed amount of Energy over its life which will occur over different periods of time depending on the application. The Manufacturer reserves the right to deny a warranty claim if the Product is determined, upon inspection, to be at its normal end of life even if within the Warranty Period.

What is Your Application?Talk to us, Vodno Battery Experts will offer you a best solution
