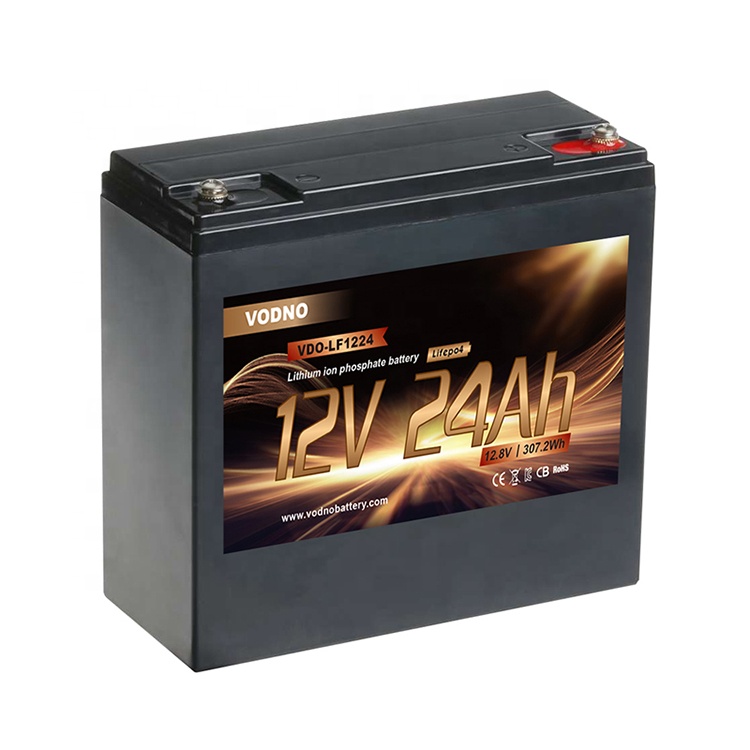

Lithium Ion Rechargeable Storage 12v Lifepo4 Battery 24ah For E-rickshaw/Golf Cart

LiFePO4 is the more efficient technology batteries, knocking out traditional lead acid batteries . VODNO provides a complete line of 12, 24 and 48 volt batteries for use in RV’s, Boats, EV's and off-grid applications and much more.

Quantity:
Share this:

Electric bicycle

Electric motorcycle

Electric tricycle

Electric boat

Motorhome

Energy storage

RC toy

Led light

Street light

UPS

Medical Equipment

Robot

Overview

Compared to lead-acid and other lithium batteries, lithium iron phosphate batteries offer significant advantages, including improved discharge and charge efficiency, longer life span and the ability to deep cycle while maintaining power. LiFePO4 batteries often come with a higher price tag, but a much better cost over life of the product. No maintenance and super long life makes them a worthwhile investment and a smart long-term solution.

We promise only GRADE A cells for your battery pack, How to differentiate

Grade A cell from B and C, pls refer to following.

Grade A: Cells perform to manufacturer specifications with long life cycle

Grade B: Cells under-perform or have other defects with short life cycle

Grade C: Cells are used, repackaged, salvaged, or damaged



What is your requirement on cells ?



Specifications

Model

VDO-LF1224

General Characteristics

Nominal voltage

12.8V

Nominal capacity@0.2C

24Ah

Nominal energy

307.2Wh

Internal Resistance

60≦mΩ

Life cycle

>2000Cycles @0.2C Charging /Discharging at 90%DOD

Self-Discharge

≤3.5%per month at 25℃

Standard Charging









Charging voltage

14.6+/-0.2V

Charging Mode(CC/CV)

At 0℃~45℃temperature, charged to 14.6V at constant current 0.2C5A,and then at constant voltage 14.6V until the current drops to 0.02C5A

Charging Current

4.8A

Max.Charging Current

12A

Standard Discharging









Discharging Current

4.8A

Max.Continuous Current

24A

Max.Pulse Current

60A(<3S)

Discharging cut-off Voltage

10.0V

Operating conditions







Operating temperature

Charge

0℃~45℃

Discharge

-20℃~60℃

Storage temperature

0℃~45℃

Water dust resistance

IP56

Structure

Casing

ABS

Dimension

181*77*167*167mm

Approx.Weight

2.9kgs

Terminal

M5

Application

The energy storage battery is applicable for commercial or residential purposes.

1.Solar Energy Storage  2.Solar Street lighting  3.Light Electric Vehicle  4.E-bike/E-Rickshaw  5.Golf Cart  6.UPS

About Us

Vodno Technology Co., Ltd. was founded in 2010, the predecessor of the lithium material, electric bike battery, and the core production-based manufacturers, after nearly seven years of development, has developed into a product design and development, battery solutions and electronic circuit program Design, battery production and quality control, sales in one of the high-tech Co., Ltd., and become the battery industry's leading enterprises. Vodno take a senior engineer of the engineering and technical team as the core,after the years of practice summed up a set of highly efficient and accurate design standards and production management practices to ensurethat each design, each product is uncompromising attention to excellence. "Treat every client with sincerity, implement every promise" is Vodno's corporate culture, scientific management, rigorous attitude, high-quality elite to Vodno brought rapid growth, won the recognition of overseas customers around the world.Now, Vodno Technology Co., Ltd. has more than 20 countries and regions around the world with a number of well-known enterprises to cooperate, many of them like "Foxconn" the world's top 500 enterprises, and most products have been CE, ROHS, UN, etc. International Standard Certification. Today, Vodno has grown into a trusted gold supplier in the battery industry.

Warranty

VODNO promise customer 3 years warranty based on battery performance,any unqualified battery are credit replacement within 3 years, no extra maintenance fees. but VODNO has no obligation under this Limited Warranty for Product subjected to the following conditions (including but not limited to):

  • Damage caused during shipping or mishandling of the Product

  • Damage due to improper installation; loose terminal connections, under-sized cabling, incorrect series (cannot be used in series) or parallel connections, reverse polarity connections or insufficient space for airflow

  • Environmental damage such as inappropriate storage conditions as defined by the VODNO, exposure to extreme hot or cold temperatures, fire or freezing, or water damage, impact or collision

  • Damage due to improper operation or maintenance such as under- or over- charging the Product, cold temperature charging, lack of cleaning resulting in corroded terminal connections or build-up of dirt, debris, organic matter, fossil fuels or chemicals on the Product casing

  • Improper use of CAN cables such as improper connections or not connecting them

  • Installing CAN communication devices that do not follow the appropriate CANbus guidelines as defined by the VODNO

  • Product that has been opened, modified or tampered with

  • Tampering or removal of manufacture date codes

  • Product that was used for applications other than which it was designed and intended for by the VODNO

  • Product that was under-sized for the application

This Limited Warranty does not cover a Product that has reached its normal end of life due to usage which may occur prior to the Warranty Period. A battery can deliver only a fixed amount of Energy over its life which will occur over different periods of time depending on the application. The Manufacturer reserves the right to deny a warranty claim if the Product is determined, upon inspection, to be at its normal end of life even if within the Warranty Period.
