51.2v 200Ah Energy Storage System Batteries For Home Application

It is composed of high-quality lithium iron phosphate batteries (series and parallel) plus an advanced BMS battery management system. Usually classified as low voltage and high voltage, includes 24V, 48V, 51.2V， and so on，with wall mounted, cabinet rack, portable case suitable for your space

Quantity:

Overview

Stacking Design - Modular stack design,flexible power use
BMS system- Built in BMS system ensure battery safety
Pulley design- battery chassis with pulleys
Easy to install- easy installation,plug and play, fuse protection

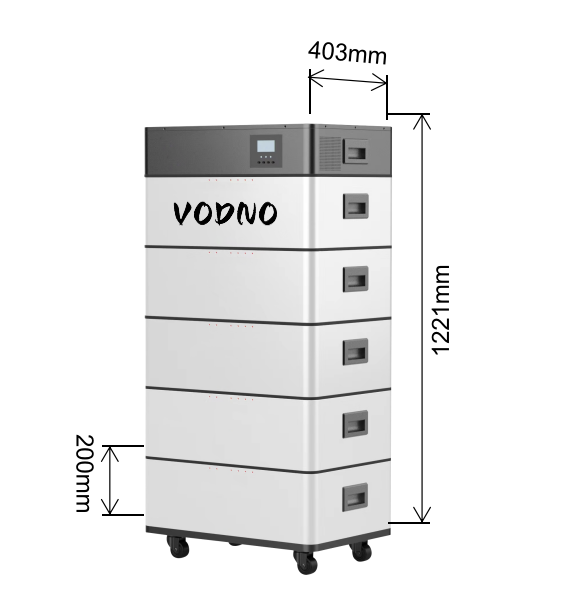

Low voltage 5KWH-50kwh energy storage system

Specifications

Phase Number	Single-Phase
Output Power	3KW-5KW Optional
Rated voltage	51.2V
Rated Capacity	200AH
Continuous Discharge Current	100A
Peak Discharge Current	110A/10S
Standard Charging Current	50A
Fast Charge Current	100A
Number Of Expandable Batteries	2~ 15
Optional Capacity Range	10.24~76.8KWH
Cooling Method	Self-Cooling
Battery Type	Lithium Iron Phosphate
Use Period	>15 Years@25°C
Cycle Life	≈10000 times
Rated Grid Frequency	50HZ/60HZ Auto Detect
Grid Voltage Range	230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2%
PV maximum Input Power	4200W
MPPT Voltage Range	60-115Vdc
The charging and discharging efficiency of the whole machine	>92%
Battery Voltage Range	40.0Vdc~60Vdc ± 0.6Vdc (under voltage alarm / shutdown voltage / over voltage alarm / over voltage recovery... LCD screen can be set)
Warranty	Battery (10 years) 丨Inverter (5 years)

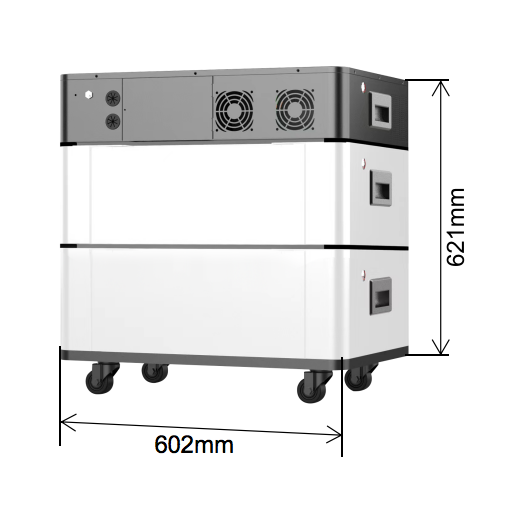

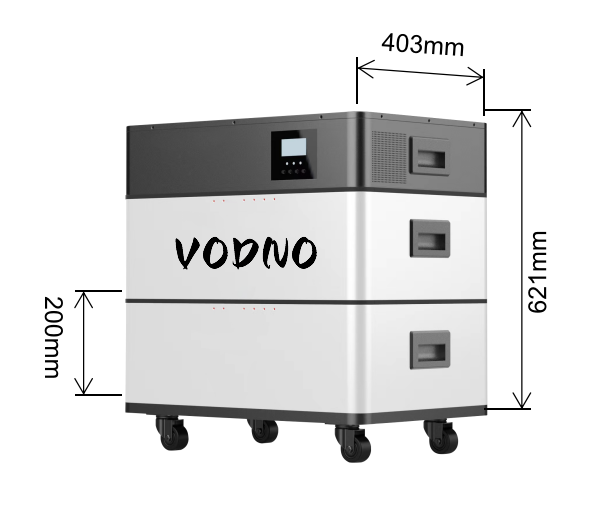

Mechanical parameters

Inverter Size/Weight	602403139mm/15KG
Battery Size/Weight	602403200mm/55KG(single layer)
Chassis Size/Weight	60240382mm/6KG
Installation Method	Stacked
