51.2v 400Ah home storage system stacked lifepo4 battery pack

It is composed of high-quality lithium iron phosphate batteries (series and parallel) plus an advanced BMS battery management system. Usually classified as low voltage and high voltage, includes 24V, 48V, 51.2V, and so on,with wall mounted, cabinet rack, portable case suitable for your space

Quantity:
Share this:

Electric bicycle

Electric motorcycle

Electric tricycle

Electric boat

Motorhome

Energy storage

RC toy

Led light

Street light

UPS

Medical Equipment

Robot

Overview



  • Rack-mounted design for 19 inch standard telecom cabinet;
  • Support communication protocol RS232, RS485,CAN;
  • Modular design, easy for installation and capacity expansion;
  • Built-in intelligent BMS to protect the battery module and maintain the battery always work at the best condition;
  • VODNO battery adopts LiFePO4 chemistry to ensure safety performance;
  • OEM acceptable with customized design to make your marketing more easier;
  • VODNO support low MOQ order;
  • Widely used for banking system, telecom, server, data center, 5G, UPS, etc

Specifications

Phase Number Single-Phase
Output Power 3KW-5KW Optional
Rated voltage 51.2V
Rated Capacity 400AH
Continuous Discharge Current 100A
Peak Discharge Current 110A/10S
Standard Charging Current 50A
Fast Charge Current 100A
Number Of Expandable Batteries 4~ 15
Optional Capacity Range 20.48~76.8KWH
Cooling Method Self-Cooling
Battery Type Lithium Iron Phosphate
Use Period >15 Years@25°C
Cycle Life ≈10000 times
Rated Grid Frequency 50HZ/60HZ Auto Detect
Grid Voltage Range 230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2%
PV maximum Input Power 4200W
MPPT Voltage Range 60-115Vdc
The charging and discharging efficiency of the whole machine >92%
Battery Voltage Range 40.0Vdc~60Vdc ± 0.6Vdc (under voltage alarm / shutdown voltage / over voltage alarm / over voltage recovery... LCD screen can be set)
Warranty Battery (10 years) 丨Inverter (5 years)

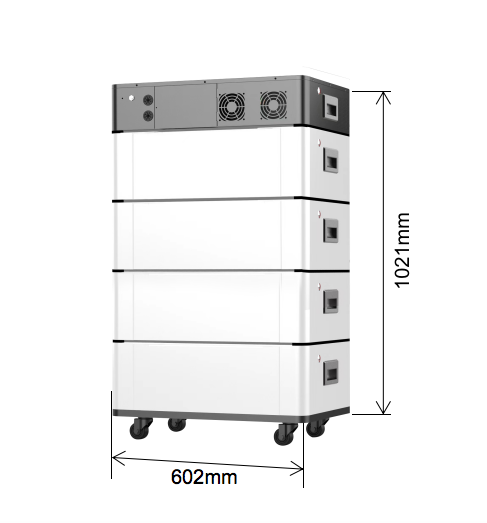

Mechanical parameters

Inverter Size/Weight 602*403*139mm/15KG
Battery Size/Weight 602*403*200mm/55KG(single layer)
Chassis Size/Weight 602*403*82mm/6KG
Installation Method Stacked







Environmental parameters

Storage Humidity Range ≤85%RH
operating Temperature 20°C~55°C
Recommended Operating Temperature 25°C
Waterproof IP21







Detail
